Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:CFR,FOB,CIF
Pesanan minimum:1
Pengangkutan:Ocean,Land,Air
$0.1-1 /
Jenama: HY atau OEM
Tempat Asal: China
Material: Pvc
Processing Service: Moulding
Color: Transparent
Jenis: Paip termoplastik
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
Kekuatan Tegangan: (30 ~ 40) MPA
Pressure: 1.6Mpa
Temperature: -15 to 55 Degree Celsius
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: CFR,FOB,CIF

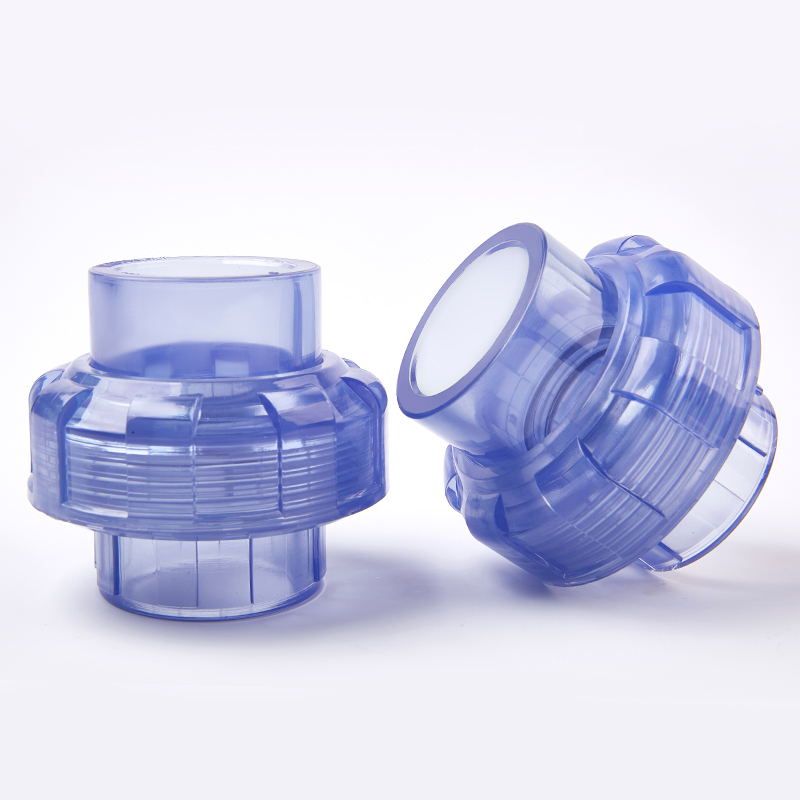

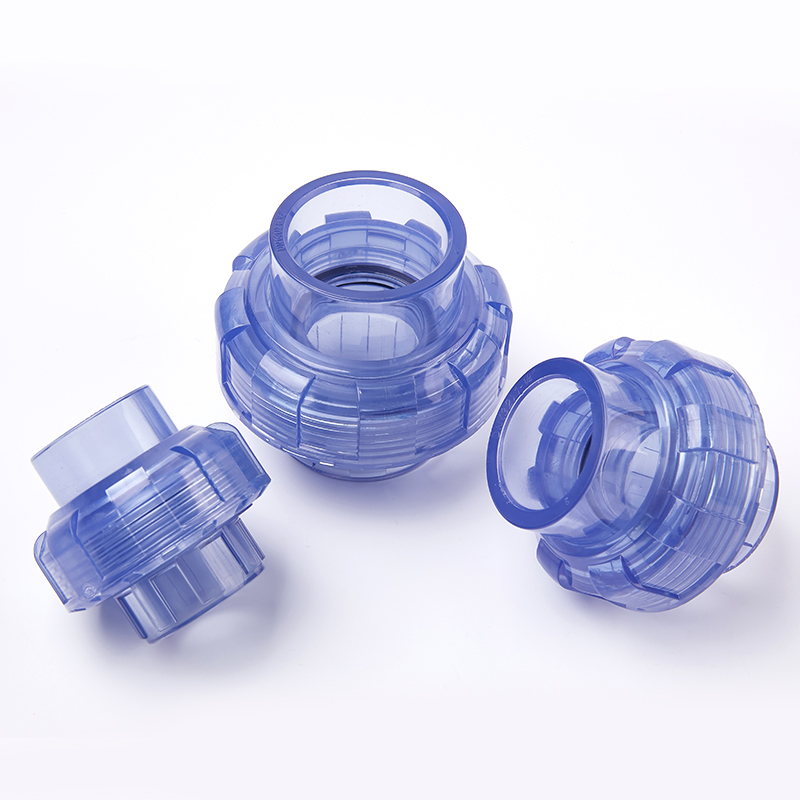

Kesatuan PVC Jelas berkualiti tinggi kami, termasuk saiz kesatuan pvc 1 padat, ialah jenis pemasangan kesatuan pvc praktikal yang direka untuk sistem saluran paip lutsinar. Dihasilkan daripada PVC sejernih kristal, ia membolehkan pemeriksaan visual yang pantas bagi sambungan sambil memastikan sambungan kalis bocor dan mudah dibuka. Tahan kakisan dan serasi dengan paip PVC standard, kesatuan ini memudahkan penyelenggaraan dan pembaikan untuk persediaan akuarium, saluran bendalir makmal dan projek paip kediaman.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | Clear PVC Union DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Transparent | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Perkemas penyelenggaraan saluran paip anda dengan UPVC Clear Unions kami yang bermutu tinggi. Direka bentuk untuk pembongkaran yang mudah, Jadual 40 Kesatuan PVC Jelas ini membolehkan anda memeriksa, membersihkan atau mengubah suai sistem anda tanpa sebarang pemotongan. Badan jernih kristal menyediakan pemantauan visual 360 darjah, menjadikannya mudah untuk mengesahkan keadaan aliran dan integriti pengedap cincin-O. Sebagai penyelesaian tahan kakisan dan berkadar tekanan, kesatuan sejati telus kami sesuai untuk pemprosesan kimia, penapisan makmal dan sistem air ketulenan tinggi.
