Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Pesanan minimum:1
Pengangkutan:Ocean,Land,Air
$0.1-1 /
Jenama: HY atau OEM
Ketepatan Pengukuran: ± 8mm
Accuracy: 0.1%
Kind: Quartz-tube Color
Pensijilan: SGS
Warranty: 1 Year
Material: PVDF
Support Customization: Oem
Place Of Origin: China
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVDF Level Indicator ANSI CL150 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Cream | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

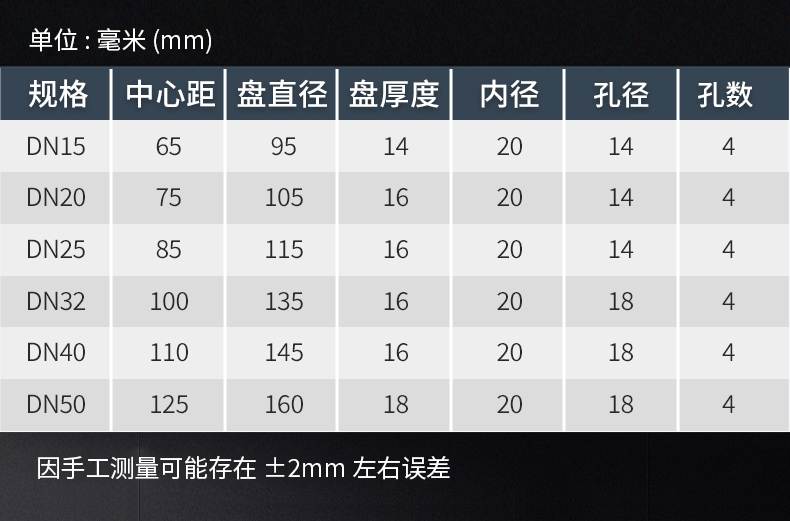

| PVDF DIN Guage valve Dimensions Table (mm) | |||||||
| DN | D1 | D | d | b | n | φ | (Mpa) working pressure |
| DIN | GB/DIN | GB/DIN | |||||
| 15 | 95 | 65 | 20 | 14 | 4 | 14 | 0.6 |
| 20 | 105 | 75 | 20 | 16 | 4 | 14 | 0.6 |
| 25 | 115 | 85 | 20 | 16 | 4 | 14 | 0.6 |
| 32 | 135 | 100 | 20 | 16 | 4 | 18 | 0.6 |
| 40 | 145 | 110 | 20 | 16 | 4 | 18 | 0.6 |
| 50 | 160 | 125 | 20 | 18 | 4 | 18 | 0.6 |
| PVDF JIS Guage valve Dimensions Table (mm) | |||||||
| DN | D1 | D | d | b | n | φ | (Mpa) working pressure |
| JIS | JIS | JIS | |||||
| 15 | 95 | 70 | 20 | 14 | 4 | 15 | 0.6 |
| 20 | 105 | 75 | 20 | 16 | 4 | 15 | 0.6 |
| 25 | 115 | 90 | 20 | 16 | 4 | 15 | 0.6 |
| 32 | 135 | 100 | 20 | 16 | 4 | 19 | 0.6 |
| 40 | 145 | 105 | 20 | 16 | 4 | 19 | 0.6 |
| 50 | 160 | 120 | 20 | 18 | 4 | 19 | 0.6 |
| PVDF ANSI Guage valve Dimensions Table (mm) | |||||||
| DN | D1 | D | d | b | n | φ | (Mpa) working pressure |
| ANSI | ANSI | ANSI | |||||
| 15 | 95 | 60 | 20 | 14 | 4 | 16 | 0.6 |
| 20 | 105 | 70 | 20 | 16 | 4 | 16 | 0.6 |
| 25 | 115 | 79 | 20 | 16 | 4 | 16 | 0.6 |
| 32 | 135 | 89 | 20 | 16 | 4 | 16 | 0.6 |
| 40 | 145 | 98 | 20 | 16 | 4 | 16 | 0.6 |
| 50 | 160 | 121 | 20 | 18 | 4 | 19 | 0.6 |
