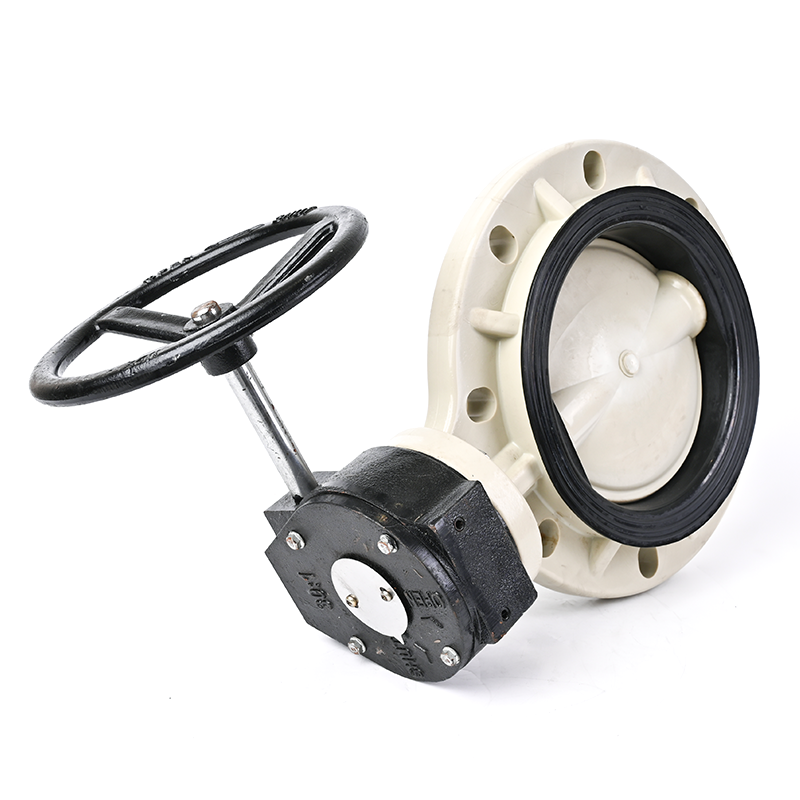

PPH Turbo Butterfly Valve PN10

Jenis bayaran:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF

Pesanan minimum:1 Piece/Pieces

Pengangkutan:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Membekalkan Keupayaan & Maklumat Tambaha...
Pembungkusan & Penghantaran

Atribut Produk

Jenama: HY atau OEM

Warranty Period: 3 Years

Types Of: Butterfly Valves

Support Customization: Oem

Place Of Origin: China

Permohonan: General

Medium Temperature: Normal Temperature

Power: Hydraulic

Structure: Butterfly

Material Of Seal: Soft Sealed

Badan Injap: PP, FRPP, PP-GF, PPH

Membekalkan Keupayaan & Maklumat Tambaha...

Pengangkutan: Ocean,Land,Air

Jenis bayaran: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,CIF

Pembungkusan & Penghantaran

Unit Jualan:

Piece/Pieces

Injap Rama-rama Turbo PPH kami ialah penyelesaian kawalan aliran industri berprestasi tinggi, injap rama-rama turbo premium yang dibuat daripada PPH tahan lasak dan tersedia dalam saiz praktikal 12 injap rama-rama dan 8 inci injap rama-rama. Ia mempunyai pemegang turbo yang licin untuk operasi suku pusingan yang mudah, pengedap kalis bocor yang ketat dan rintangan kimia yang unggul. Ringan, mudah dipasang dan penyelenggaraan yang rendah, ia sesuai untuk pemindahan kimia tekanan sederhana rendah, rawatan air dan sistem paip industri.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	PPH Turbo Butterfly Valve PN10
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PPH
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Cream
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Sebagai pengeluar injap rama-rama plastik gear cacing profesional, kami pakar dalam menyediakan penyelesaian kawalan aliran untuk persekitaran perindustrian yang paling mencabar. PPH Worm Gear Butterfly Valve unggul kami direka bentuk untuk kecemerlangan, menggabungkan rintangan kimia unggul bahan Beta-PPH dengan kawalan tepat kotak gear tugas berat.

PPH Butterfly Valve-Worm Gear Type Parts&Material
No.	Parts	Materials
1	Gear box	cast iron,aluminum alloy,plastic
2	Body	PPH
3	Seat	EPDM,FPM
4	Stem	steel,stainless steel
5	Disc	PPH
6	Disc O-ring	EPDM,FPM
7	Stud Bolt &Nut杆0	steel&plastic nuts,stainles steel
8	Stem O-ring	EPDM,FPM

PPH DIN Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	GB/DIN	D1	L	GB/DIN	working pressure(Mpa)
125	131	210	255	62	8	0.6#
150	153	240	285	67	8	0.6#
200	205	295	340	85	8	0.6#
250	259	350	410	105	12	0.6
300	307	400	480	120	12	0.6
350	358	460	530	130	16	0.4
400	389	515	605	140	16	0.4
450	446	565	630	152	20	0.4
500	494	620	705	155	20	0.3
600	590	725	820	175	20	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀

PPH JIS Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	JIS	D1	L	JIS	working pressure(Mpa)
125	131	210	255	62	8	0.6#
150	153	240	285	67	8	0.6#
200	205	290	340	85	12*	0.6#
250	259	355	410	105	12	0.6
300	307	400	480	120	16*	0.6
350	358	445	530	130	16	0.4
400	389	510	605	140	16	0.4
450	446	565	630	152	20	0.4
500	494	620	705	155	20	0.3
600	590	730	820	175	24*	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀

PPH ANSI Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	ANSI	D1	L	ANSI	working pressure(Mpa)
125	131	216	255	62	8	0.6#
150	153	241	285	67	8	0.6#
200	205	298	340	85	8	0.6#
250	259	362	410	105	12	0.6
300	307	432	480	120	12	0.6
350	358	476	530	130	12*	0.4
400	389	540	605	140	16	0.4
450	446	578	630	152	16*	0.4
500	494	635	705	155	20	0.3
600	590	749	820	175	20	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀
