PPH Injap Semak Putar

Jenis bayaran:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF

Pesanan minimum:1

Pengangkutan:Ocean,Land,Air

$0.1-1 /

Atribut Produk
Membekalkan Keupayaan & Maklumat Tambaha...
Pembungkusan & Penghantaran

Atribut Produk

Jenama: HY atau OEM

Pressure: Low Pressure

Borang Pengedap: Pengedap diri

Material: PP, PPH

Permohonan: Industrial Usage

Standard: DIN

Medium Temperature: Normal Temperature

Warranty Period: 3 Years

Power: Hydraulic

Membekalkan Keupayaan & Maklumat Tambaha...

Pengangkutan: Ocean,Land,Air

Jenis bayaran: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,CIF

Pembungkusan & Penghantaran

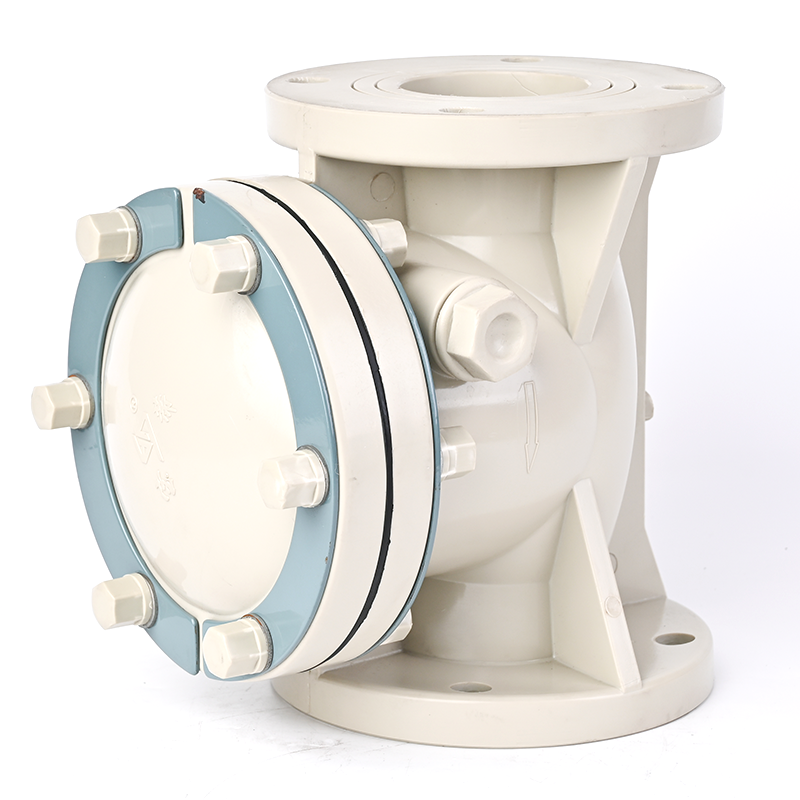

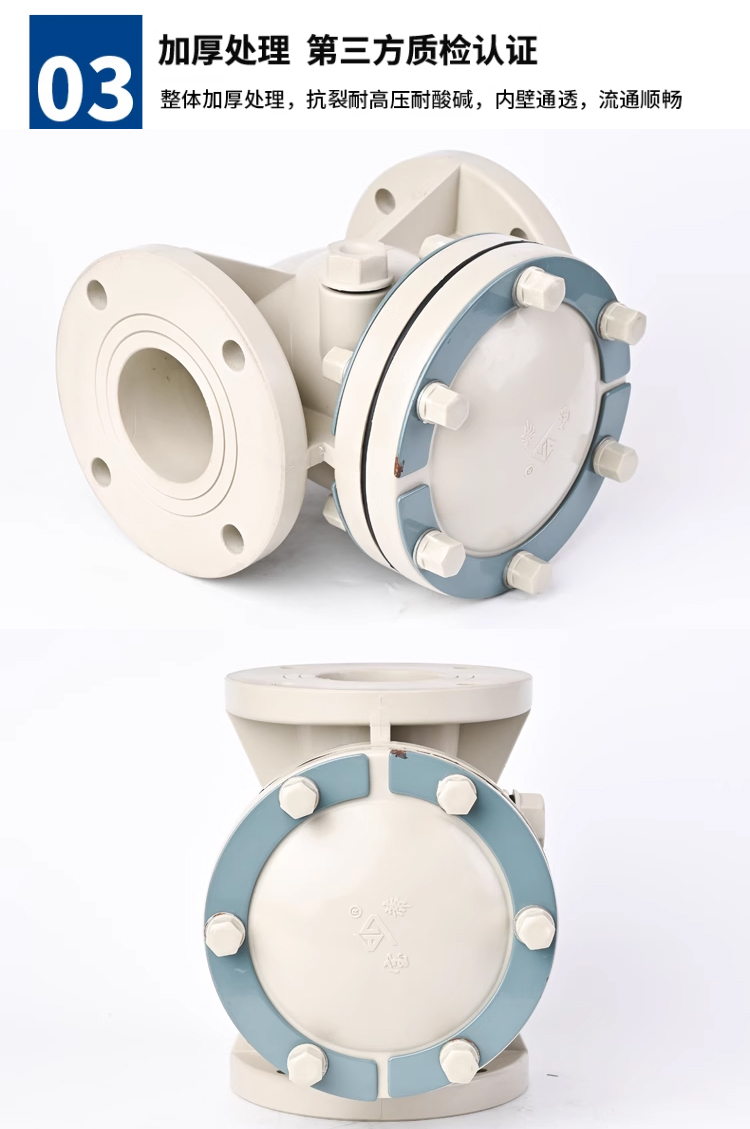

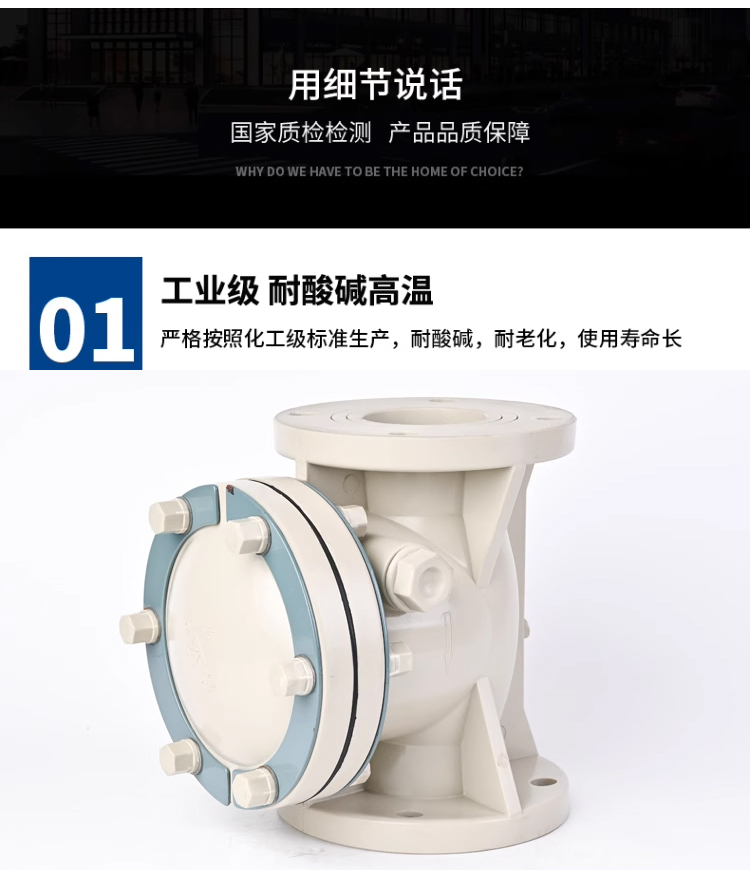

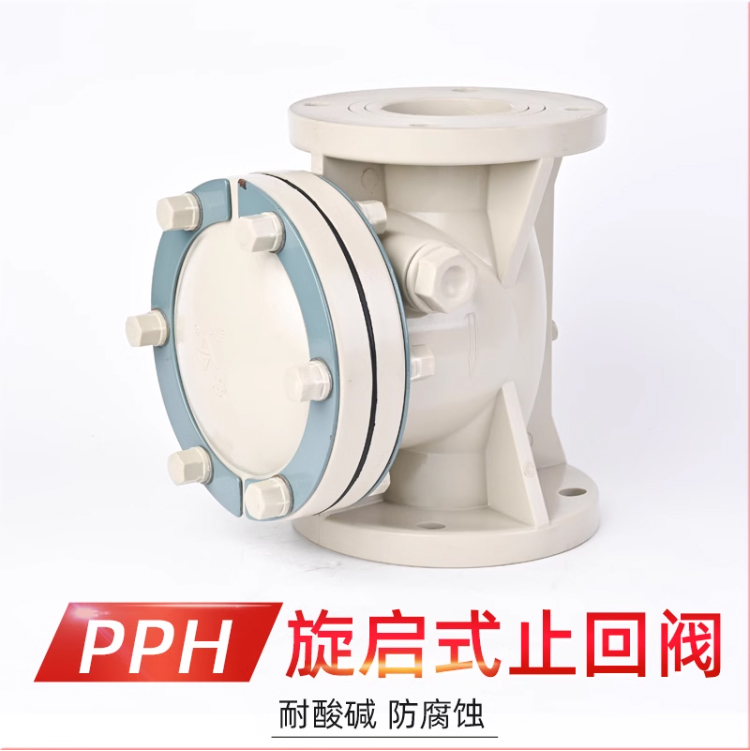

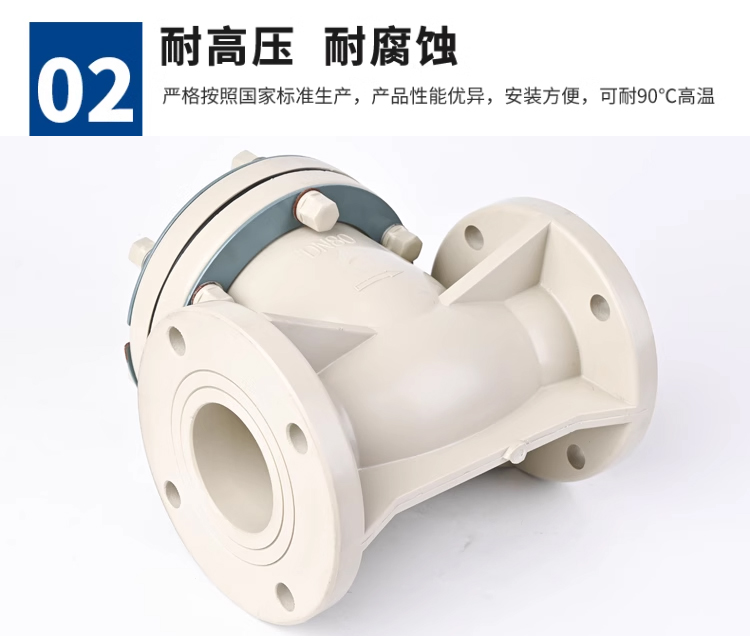

PPH Injap Semak Berputar ini ialah injap sehala ayunan plastik berprestasi tinggi, direka bentuk dengan fungsi teras injap sehala jenis ayunan dan serasi dengan persediaan saluran paip injap sehala bebibir. Dihasilkan daripada PPH premium, ia memberikan rintangan kimia dan suhu yang luar biasa, menampilkan mekanisme ayunan berputar untuk aliran sehala yang lancar dan pencegahan aliran balik yang boleh dipercayai. Padat, tahan lama dan mudah dipasang, ia sesuai untuk pemindahan bendalir menghakis dan sistem paip industri tekanan sederhana rendah.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	Rotary Check Valve PPH
Connect Type:	Cement/Glue/socket
Brand:	HUIYA or OEM
Material:	PPH
Specifications:	Size(dimensions):	20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
		DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
	Color:	LightGrey(Default), Grey, Blue,white
	Standard:	ISO4422, ISO1452, GBT10002，DIN
	Pressure rating :	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Rotary Check Valve PPH kami ialah pilihan tanpa pulangan teratas untuk sistem menghakis perindustrian! PPH Premium memberikan rintangan kimia & suhu yang tiada tandingan, dengan mekanisme ayunan berputar yang licin untuk aliran sehala yang ketat dan pengedap kalis bocor. Tahan lama, mudah dipasang, penyelenggaraan rendah—sempurna untuk pemindahan kimia dan paip industri tekanan sederhana rendah.

PPH Swing Check Valve Parts&Material
No.	Parts	Materials
1	Bonnet	PPH
2	Board	steel,stainless steel
3	Stud Bolt &Nut	steel,stainless steel
4	Swing Arms	PPH
5	Nut	PPH
6	Disc Sealing	EPDM,FPM,PTFE
7	Disc Holder	PPH
8	Disc	PPH
9	Body	PPH
10	Shoft	PPH
11	Bonnet Cushion	EPDM,FPM,PTFE

PPH DIN Swing Check Valve Dimensions Table
DN	D(mm)	D1	L	h	n	φ(mm)	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
DN	DIN	D1	L	h	HG/DIN	HG/DIN	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
25	85	125	160	16	4	14	1.0	0.05
32	100	145	180	16	4	18	1.0	0.06
40	110	145	180	16	4	18	1.0	0.06
50	125	160	200	18	4	18	1.0	0.06
65	145	180	240	22	4	18	1.0	0.08
80	160	195	260	22	8	18	0.6	0.08
100	180	215	300	22	8	18	0.6	0.08
125	210	250	350	28	8	18	0.6	0.1
150	240	280	405	30	8	22	0.6	0.1
200	295	330	500	34	8	22	0.3	0.1
250	350	395	600	37	12	22	0.3	0.1
300	400	450	600	38	12	22	0.3	0.1

PPH JIS Swing Check Valve Dimensions Table
DN	D(mm)	D1	L	h	n	φ(mm)	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
DN	JIS	D1	L	h	JIS	JIS	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
25	90	125	160	16	4	15	1.0	0.05
32	100	145	180	16	4	19	1.0	0.06
40	105	145	180	16	4	19	1.0	0.06
50	120	160	200	18	4	19	1.0	0.06
65	140	180	240	22	4	19	1.0	0.08
80	150	195	260	22	8	19	0.6	0.08
100	175	215	300	22	8	19	0.6	0.08
125	210	250	350	28	8	19	0.6	0.1
150	240	280	405	30	8	23	0.6	0.1
200	290	330	500	34	12*	23	0.3	0.1
250	355	395	600	37	12	25	0.3	0.1
300	400	450	600	38	16*	25	0.3	0.1

PPH ANSI Swing Check Valve Dimensions Table
DN	D(mm)	D1	L	h	n	φ(mm)	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
DN	ANSI	D1	L	h	ANSI	ANSI	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
25	79	125	160	16	4	16	1.0	0.05
32	89	145	180	16	4	16	1.0	0.06
40	98	145	180	16	4	16	1.0	0.06
50	121	160	200	18	4	19	1.0	0.06
65	140	180	240	22	4	19	1.0	0.08
80	152	195	260	22	4*	19	0.6	0.08
100	190	215	300	22	8	19	0.6	0.08
125	216	250	350	28	8	22	0.6	0.1
150	241	280	405	30	8	22	0.6	0.1
200	298	330	500	34	8	22	0.3	0.1
250	362	395	600	37	12	26	0.3	0.1
300	432	450	600	38	12	26	0.3	0.1
