Jiaxing Huiya Pipeline Technology Co., Ltd
Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Pesanan minimum:1
Pengangkutan:Ocean,Land,Air
$0.1-1 /
Jenama: HY atau OEM
Warranty Period: 3 Years
Types Of: Ball Valves
Support Customization: Oem
Tempat Asal: China
Permohonan: Umum
Medium: Normal Temperature
Kuasa: Hidraulik
Struktur: Injap bola terapung
Suhu: Suhu normal
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF
| S/No. | Item | Material | Q’ty | |

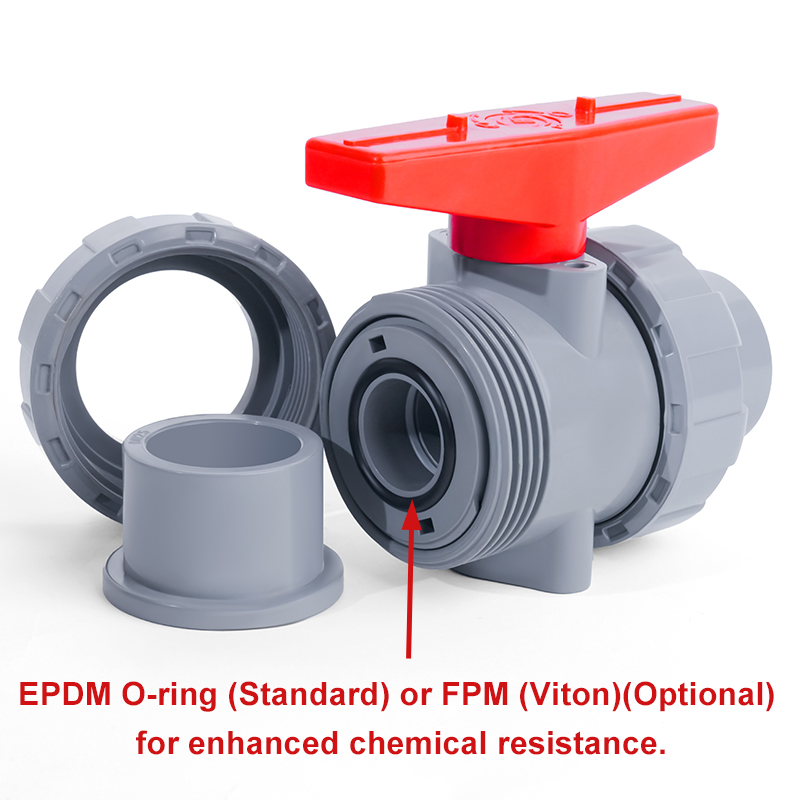

| 3\4\8\9 | 0-Ring | EPDM/VITON | 7 | PCS |
| 1 | Socket | CPVC | 2 | PCS |
| 2 | Screw Nut | CPVC | 2 | PCS |
| 6 | Stem | CPVC | 1 | PCS |
| 7 | Handle | ABS | 1 | PCS |
| 10 | Seat Carrier | CPVC | 1 | PCS |
| 11 | Seat | PTFE | 2 | PCS |
| 12 | Ball | CPVC | 1 | PCS |
| 13 | Body | CPVC | 1 | PCS |

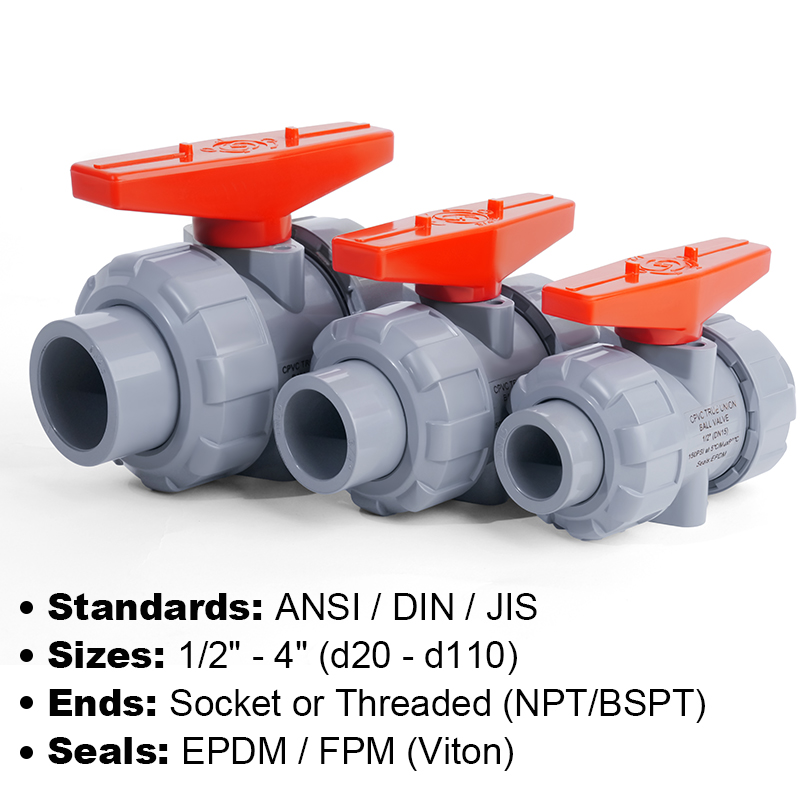

| SIZE | d | d1 | d2 | |||||||||
| ANSI | DIN | JIS | ANSI | DIN | JIS | |||||||
| 1/2”(15) | 15 | 21.40 | 20.25 | 22.30 | 21.25 | 20.05 | 21.85 | |||||
| 3/4”(20) | 20 | 26.75 | 25.25 | 26.30 | 26.58 | 25.05 | 25.85 | |||||
| 1”(25) | 25 | 33.52 | 32.25 | 32.33 | 33.28 | 32.05 | 31.85 | |||||
| 1-1/4”(32) | 32 | 42.28 | 40.25 | 38.43 | 42.05 | 40.05 | 37.85 | |||||
| 1-1/2”(40) | 40 | 48.40 | 50.25 | 48.46 | 48.12 | 50.05 | 47.75 | |||||
| 2”(50) | 50 | 60.45 | 63.25 | 60.56 | 60.18 | 63.05 | 59.75 | |||||
| 2-1/2”(65) | 63 | 73.30 | 75.25 | 76.60 | 72.85 | 75.05 | 75.87 | |||||
| 3”(80) | 75 | 89.25 | 90.35 | 89.60 | 88.70 | 90.05 | 88.83 | |||||
| 4”(100) | 90 | 114.60 | 110.35 | 114.70 | 114.10 | 110.05 | 113.98 | |||||
| SIZE | D | L | L1 | L2 | L3 | W | H1 | H2 | F | Operating torque(N.M) |
| 1/2”(15) | 54 | 106 | 23 | 60 | 52 | 84 | 52.5 | 27.5 | 31 | 2 |
| 3/4”(20) | 63 | 114 | 26 | 62 | 54 | 90 | 59 | 32 | 33 | 2.5 |
| 1”(25) | 73.5 | 128 | 29 | 70 | 62 | 106 | 67.5 | 37.25 | 40 | 4 |
| 1-1/4”(32) | 84.5 | 144 | 33 | 78 | 70 | 116 | 77.5 | 42.75 | 52 | 5 |
| 1-1/2”(40) | 98 | 158.5 | 35.5 | 87.5 | 79.5 | 128 | 90 | 50 | 52 | 7.5 |
| 2”(50) | 118 | 172 | 38.5 | 95 | 85 | 140 | 106 | 60 | 70 | 8.5 |
| 2-1/2”(65) | 150 | 278 | 64.5 | 144.5 | 132.5 | 198 | 136.5 | 76.5 | 84 | 13 |
| 3”(80) | 169 | 310 | 70 | 166 | 150 | 218 | 149.5 | 86 | 84 | 16 |
| 4”(100) | 190 | 352 | 84 | 181 | 157 | 235 | 166 | 98 | 121 | 25 |
| Industry Type CPVC Ball Valves Packing Table | |||||
| Description | Size | Packing (Qty) | Weight (g/pcs) | Net Weight/KG | Packing Specification(mm) |
| CPVC Ball Valve | 1/2" (DN15) | 100 | 178.63 | 17.86 | 412*292*440 |
| 3/4" (DN20) | 75 | 241.07 | 18.08 | 462*327*372 | |
| 1" (DN25) | 48 | 385.63 | 18.51 | 436*316*417 | |
| 1-1/4" (DN32) | 36 | 560.63 | 20.18 | 381*356*468 | |
| 1-1/2" (DN40) | 24 | 837.63 | 20.10 | 432*408*346 | |
| 2" (DN50) | 18 | 1262.96 | 22.73 | 513*378*378 | |
| 2-1/2" (DN65) | 8 | 2722.74 | 21.78 | 436*312*508 | |
| 3" (DN80) | 6 | 4165.71 | 24.99 | 531*484*314 | |
| 4" (DN100) | 4 | 5750.00 | 23.00 | 542*406*349 | |
