Jenama: HY atau OEM
Warranty Period: 3 Years
Types Of: Ball Valves
Support Customization: Oem
Tempat Asal: China
Permohonan: Umum
Medium Temperature: Normal Temperature
Kuasa: Hidraulik
Struktur: Bola
Borang Sambungan: Bebibir
Saluran: Lurus melalui jenis
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF

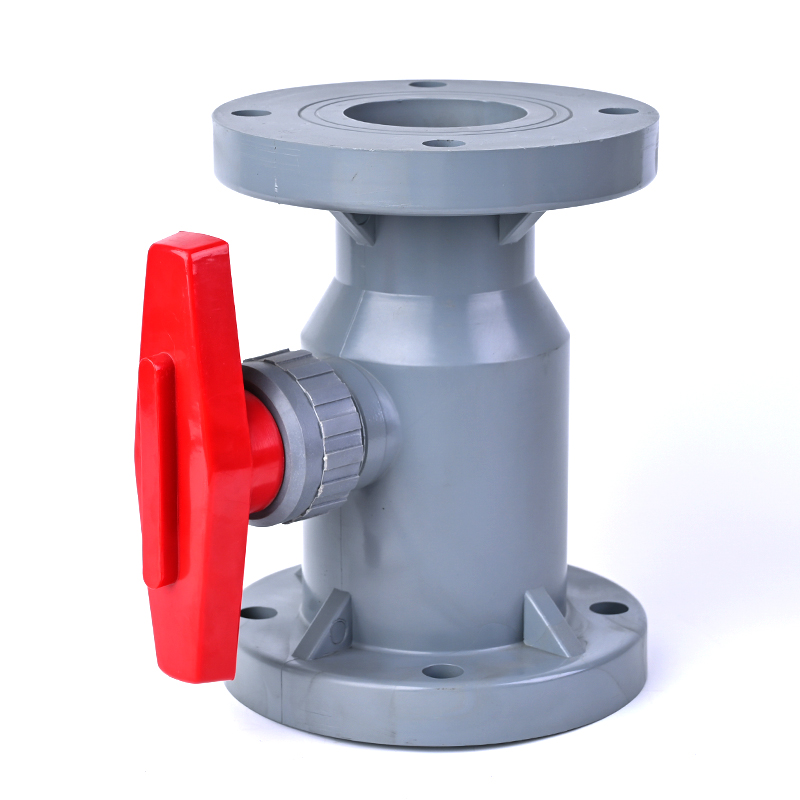

Injap Bebibir Plastik CPVC premium kami ialah Injap Bebibir berprestasi tinggi yang direka untuk ketahanan industri, tersedia dalam spesifikasi injap bebola 4 praktikal. Sebagai injap bebibir peringkat atas, ia menampilkan binaan CPVC yang teguh dengan rintangan kimia dan kakisan yang unggul, pengedap bebibir ketepatan untuk prestasi kalis bocor dan penggerak yang lancar untuk kawalan aliran yang boleh dipercayai. Ideal untuk rawatan air industri, pemprosesan kimia dan sistem cecair tekanan sederhana rendah yang memerlukan penyelesaian paip yang kukuh dan tahan lama.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

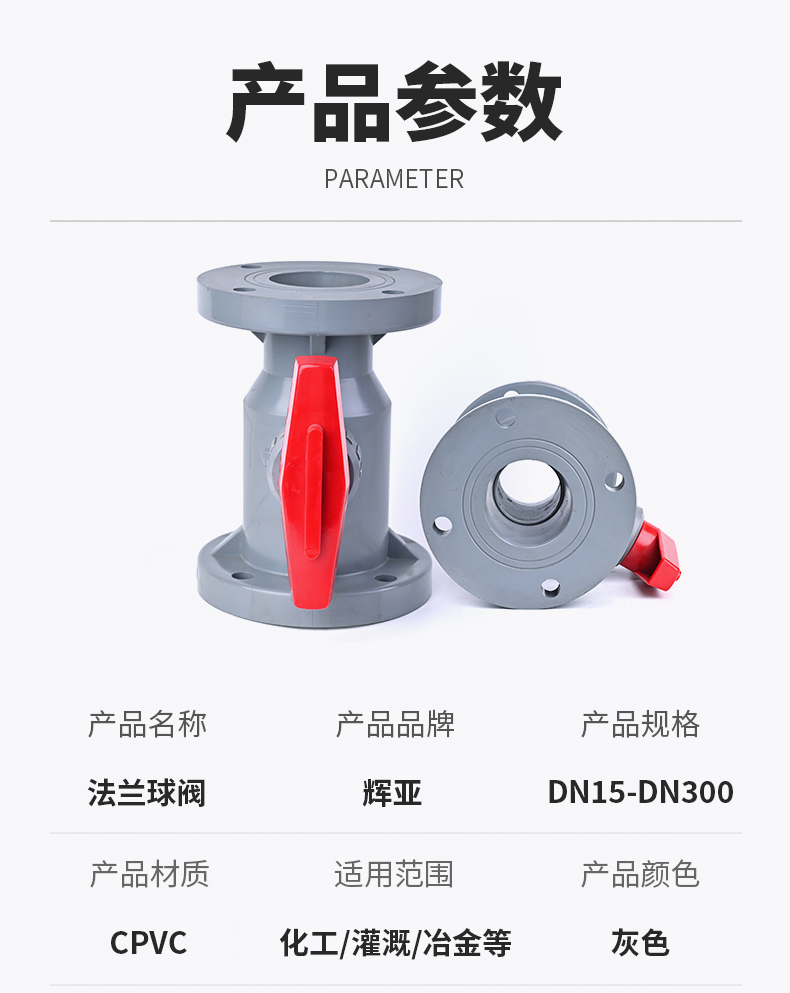

| Key Word: | CPVC Plastic Flanged Ball Valve 3 inch | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC(PVC-C) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | Normal Temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

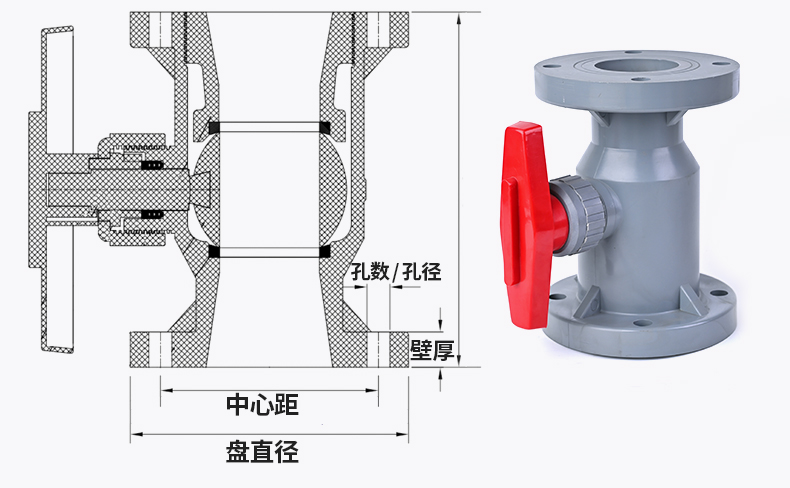

| CPVC Flanged Ball Valve Parts&Material | ||
No. |
Parts |
Materials |
| 1 | Body | CPVC |
| 2 | Ballseal | PTFE |
| 3 | Ball | CPVC |
| 4 | Inner plug | CPVC |
| 5 | Stem seal | PTFE |
| 6 | locator | CPVC |
| 7 | Compression nut | CPVC |
| 8 | Stem | CPVC |
| 6 | Handle | ABS |
| CPVC DIN Flanged Ball Valve Dimensions Table | |||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa)working pressure | ||
| DIN | HG/DIN | HG/DIN | FRPP/PPH | UPVC/CPVC | PVDF | ||||
| 15 | 95 | 65 | 100 | 15 | 4 | 14 | 1.0 | 1.6 | 1.6 |
| 20 | 105 | 75 | 120 | 17 | 4 | 14 | 1.0 | 1.6 | 1.6 |
| 25 | 115 | 85 | 140 | 17 | 4 | 14 | 1.0 | 1.6 | 1.6 |
| 32 | 135 | 100 | 160 | 18 | 4 | 18 | 1.0 | 1.6 | 1.6 |
| 40 | 145 | 110 | 165 | 18 | 4 | 18 | 1.0 | 1.0 | 1.6 |
| 50 | 160 | 125 | 180 | 20 | 4 | 18 | 1.0 | 1.0 | 1.6 |
| 65 | 180 | 145 | 220 | 22 | 4 | 18 | 1.0 | 1.0 | 1.0 |
| 80 | 195 | 160 | 250 | 25 | 8 | 18 | 1.0 | 1.0 | 1.0 |
| 100 | 215 | 180 | 280 | 25 | 8 | 18 | 1.0 | 1.0 | 1.0 |
| 125 | 245 | 210 | 325 | 28 | 8 | 18 | 0.6 | 0.6 | 1.0 |
| 150 | 280 | 240 | 365 | 30 | 8 | 22 | 0.6 | 0.6 | 1.0 |
| 200 | 335 | 295 | 405 | 35 | 8 | 22 | 0.3 | 0.3 | 0.6 |
| 250 | 400 | 350 | 500 | 38 | 12 | 22 | 0.3 | 0.3 | 0.4 |
| 300 | 455 | 400 | 600 | 40 | 12 | 22 | 0.3 | 0.3 | 0.3 |
| CPVC JIS Flanged Ball Valve Dimensions Table | |||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa)working pressure | ||
| JIS | JIS | JIS | FRPP/PPH | UPVC/CPVC | PVDF | ||||
| 15 | 95 | 70 | 100 | 15 | 4 | 15 | 1.0 | 1.6 | 1.6 |
| 20 | 105 | 75 | 120 | 17 | 4 | 15 | 1.0 | 1.6 | 1.6 |
| 25 | 115 | 90 | 140 | 17 | 4 | 15 | 1.0 | 1.6 | 1.6 |
| 32 | 135 | 100 | 160 | 18 | 4 | 19 | 1.0 | 1.6 | 1.6 |
| 40 | 145 | 105 | 165 | 18 | 4 | 19 | 1.0 | 1.0 | 1.6 |
| 50 | 160 | 120 | 180 | 20 | 4 | 19 | 1.0 | 1.0 | 1.6 |
| 65 | 180 | 140 | 220 | 22 | 4 | 19 | 1.0 | 1.0 | 1.0 |
| 80 | 195 | 150 | 250 | 25 | 8 | 19 | 1.0 | 1.0 | 1.0 |
| 100 | 215 | 175 | 280 | 25 | 8 | 19 | 1.0 | 1.0 | 1.0 |
| 125 | 245 | 210 | 325 | 28 | 8 | 19 | 0.6 | 0.6 | 1.0 |
| 150 | 280 | 240 | 365 | 30 | 8 | 23 | 0.6 | 0.6 | 1.0 |
| 200 | 335 | 290 | 405 | 35 | 12* | 23 | 0.3 | 0.3 | 0.6 |
| 250 | 400 | 355 | 500 | 38 | 12 | 25 | 0.3 | 0.3 | 0.4 |
| 300 | 455 | 400 | 600 | 40 | 16* | 25 | 0.3 | 0.3 | 0.3 |
| CPVC ANSI Flanged Ball Valve Dimensions Table | |||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa)working pressure | ||
| ANSI | ANSI | ANSI | FRPP/PPH | UPVC/CPVC | PVDF | ||||
| 15 | 95 | 60 | 100 | 15 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 20 | 105 | 70 | 120 | 17 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 25 | 115 | 79 | 140 | 17 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 32 | 135 | 89 | 160 | 18 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 40 | 145 | 98 | 165 | 18 | 4 | 16 | 1.0 | 1.0 | 1.6 |
| 50 | 160 | 121 | 180 | 20 | 4 | 19 | 1.0 | 1.0 | 1.6 |
| 65 | 180 | 140 | 220 | 22 | 4 | 19 | 1.0 | 1.0 | 1.0 |
| 80 | 195 | 152 | 250 | 25 | 4* | 19 | 1.0 | 1.0 | 1.0 |
| 100 | 215 | 190 | 280 | 25 | 8 | 19 | 1.0 | 1.0 | 1.0 |
| 125 | 245 | 216 | 325 | 28 | 8 | 22 | 0.6 | 0.6 | 1.0 |
| 150 | 280 | 241 | 365 | 30 | 8 | 22 | 0.6 | 0.6 | 1.0 |
| 200 | 335 | 298 | 405 | 35 | 8 | 22 | 0.3 | 0.3 | 0.6 |
| 250 | 400 | 362 | 500 | 38 | 12 | 26 | 0.3 | 0.3 | 0.4 |
| 300 | 455 | 432 | 600 | 40 | 12 | 26 | 0.3 | 0.3 | 0.3 |
