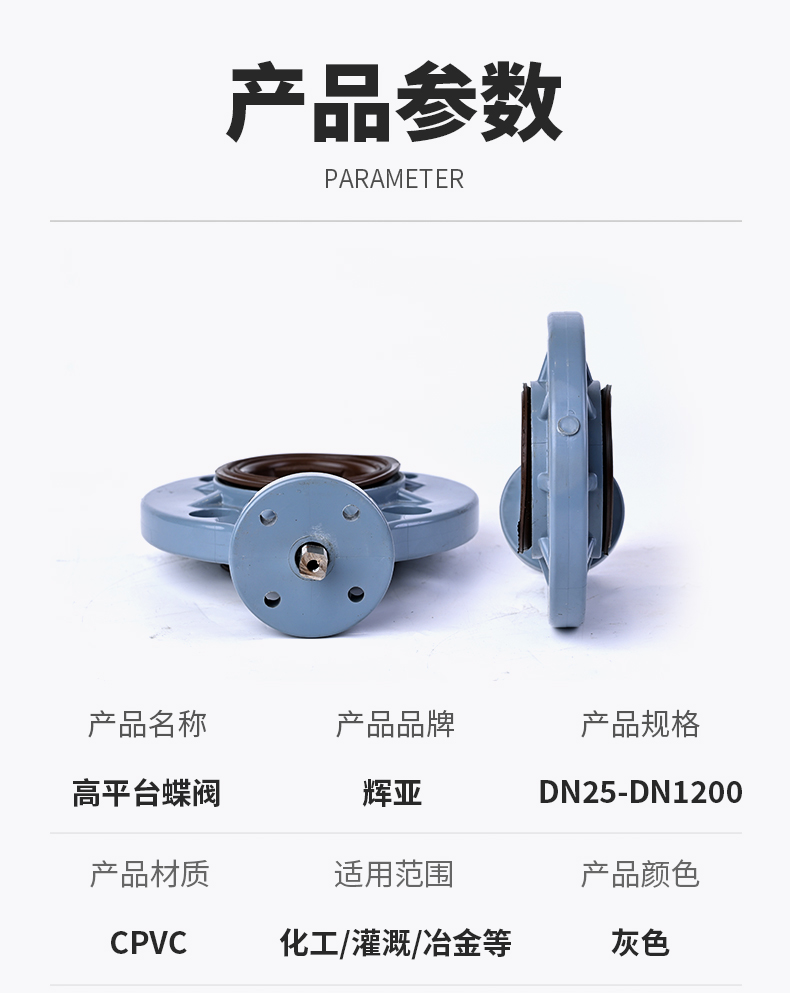

Injap Rama-rama Platform Tinggi CPVC

Jenis bayaran:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF

Pesanan minimum:1

Pengangkutan:Ocean,Land,Air

$0.1-1 /

Atribut Produk
Membekalkan Keupayaan & Maklumat Tambaha...
Pembungkusan & Penghantaran

Atribut Produk

Jenama: HY atau OEM

Warranty Period: 3 Years

Types Of: Butterfly Valve

Support Customization: Oem

Place Of Origin: China

Permohonan: Umum

Medium Temperature: Normal Temperature

Kuasa: hidraulik

Medium Aliran: Air, Minyak, Asid

Struktur: rama-rama

Membekalkan Keupayaan & Maklumat Tambaha...

Pengangkutan: Ocean,Land,Air

Jenis bayaran: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,CIF

Pembungkusan & Penghantaran

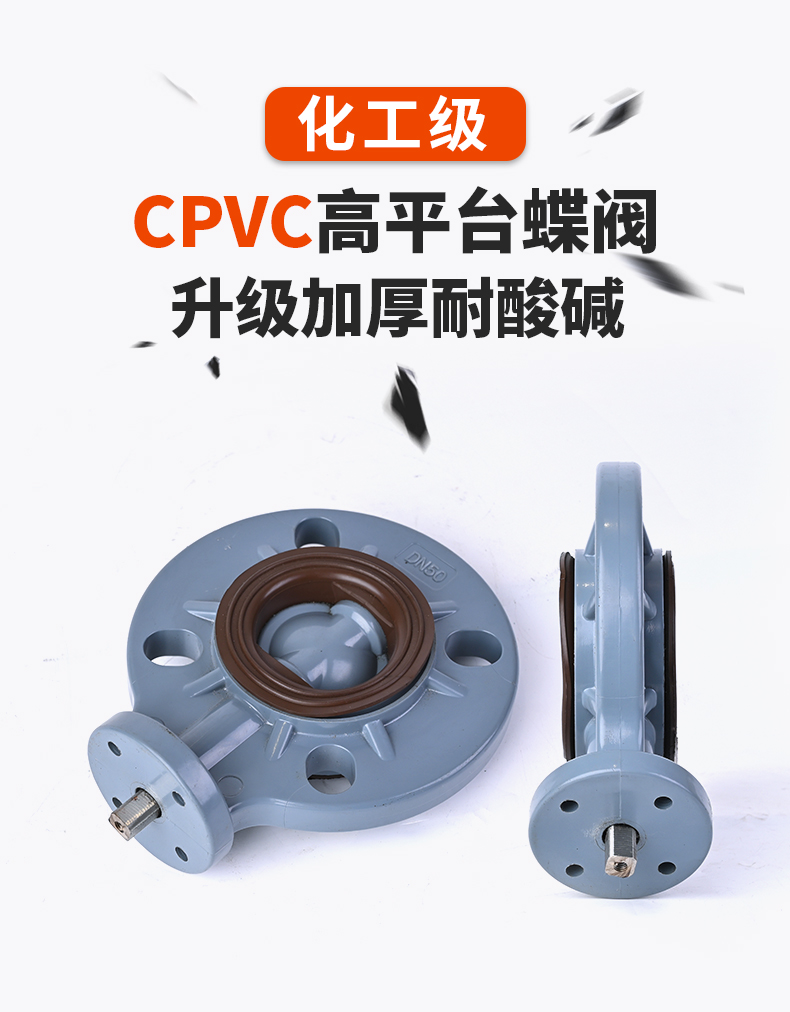

Injap Rama-rama Platform Tinggi CPVC kami ialah penyelesaian kawalan aliran industri yang teguh, tersedia dalam 8 injap rama-rama dan 4 saiz injap rama-rama yang popular, injap rama-rama kejuruteraan premium untuk keperluan paip yang pelbagai. Dihasilkan daripada CPVC gred tinggi untuk rintangan kimia dan suhu yang unggul, ia menampilkan reka bentuk platform tinggi untuk pemasangan penggerak yang mudah, operasi suku pusingan yang lancar dan pengedap yang ketat. Ringan, tahan lama dan rendah penyelenggaraan, sesuai untuk pemprosesan kimia tekanan sederhana rendah dan sistem rawatan air.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	CPVC High Platform Butterfly Valve
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	CPVC(PVC-C)
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Grey
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN16(1.6Mpa)
	Working temperature:	-15 to 55 Degree Celsius
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

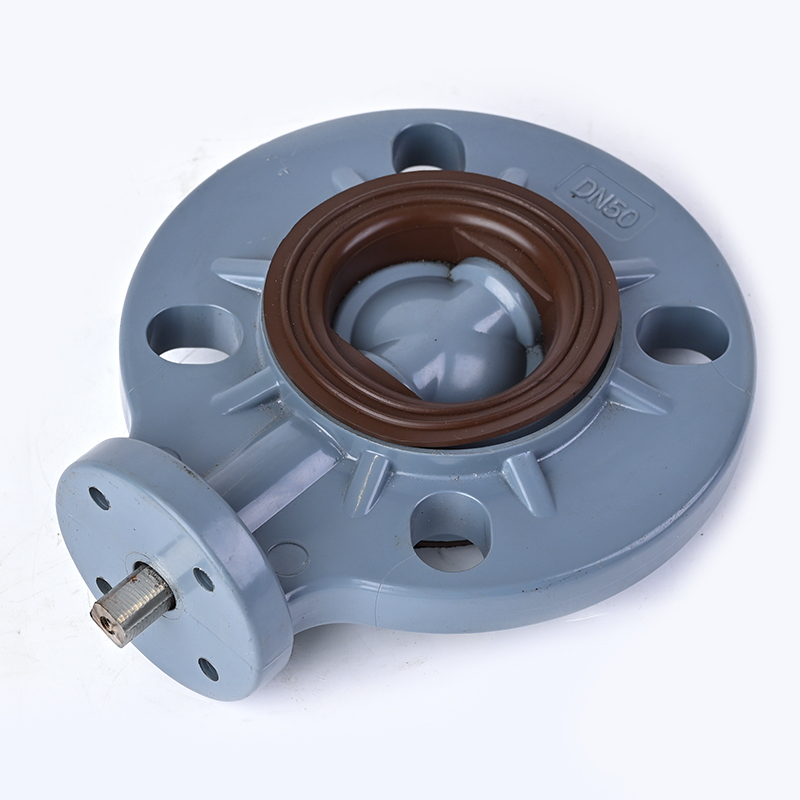

Injap Rama-rama Plastik CPVC kami dengan Pad Tinggi direka bentuk khusus untuk persekitaran yang mencabar. Sebagai pengeluar injap rama-rama CPVC terkemuka di China, kami menyediakan penyelesaian kawalan aliran yang boleh dipercayai yang mengutamakan keselamatan dan ketahanan dalam aplikasi media yang agresif.

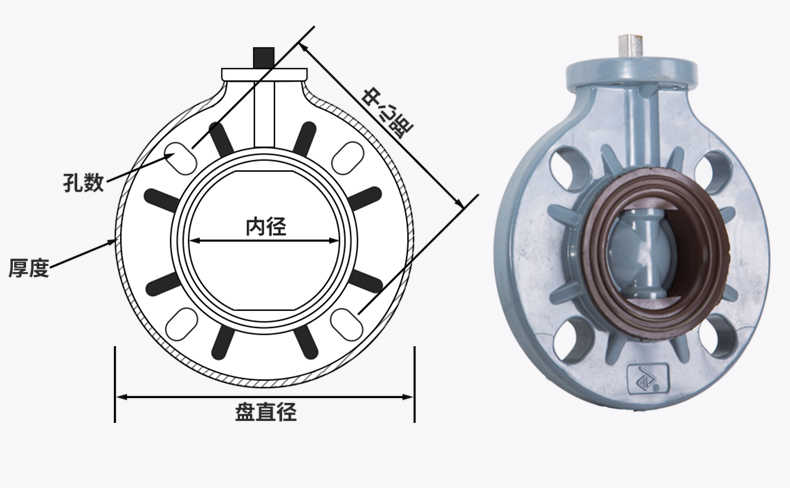

CPVC DIN Butterfly Valve For Automation Dimensions Table (mm)
DN	d	D	D1	L	n
DN	d	DIN	D1	L	GB/DIN
25	35	85	125	37	4
32	35	100	125	37	4
40	47	110	145	38	4
50	56	125	160	40	4
65	71	145	180	45	4
80	85	160	195	46	8
100	105	180	225	55	8
125	131	210	255	62	8
150	153	240	285	67	8
200	205	295	340	85	8
250	259	350	410	105	12
300	307	400	480	120	12
350	358	460	530	130	16
400	389	515	605	140	16
450	446	565	630	152	20
500	494	620	705	155	20
600	590	725	820	175	20
700	676	840	925	200	24
800	771	950	1060	240	24
900*	870	1050	1170	240	28
1000	970	1160	1290	300	28
1200*	1170	1380	1510	300	32

CPVC JIS Butterfly Valve For Automation Dimensions Table (mm)
DN	d	D	D1	L	n
DN	d	JIS	D1	L	JIS
25	35	90	125	37	4
32	35	100	125	37	4
40	47	105	145	38	4
50	56	120	160	40	4
65	71	140	180	45	4
80	85	150	195	46	8
100	105	175	225	55	8
125	131	210	255	62	8
150	153	240	285	67	8
200	205	290	340	85	12*
250	259	355	410	105	12
300	307	400	480	120	16*
350	358	445	530	130	16
400	389	510	605	140	16
450	446	565	630	152	20
500	494	620	705	155	20
600	590	730	820	175	24*
700	676	840	925	200	24
800	771	950*	1060	240	28*
900*	870	1050	1170	240	28
1000	970	1160	1290	300	28
1200*	1170	1380	1510	300	32

CPVC ANSI Butterfly Valve For Automation Dimensions Table (mm)
DN	d	D	D1	L	n
DN	d	ANSI	D1	L	ANSI
25	35	79	125	37	4
32	35	89	125	37	4
40	47	98	145	38	4
50	56	121	160	40	4
65	71	140	180	45	4
80	85	152	195	46	4*
100	105	190	225	55	8
125	131	216	255	62	8
150	153	241	285	67	8
200	205	298	340	85	8
250	259	362	410	105	12
300	307	432	480	120	12
350	358	476	530	130	12*
400	389	540	605	140	16
450	446	578	630	152	16*
500	494	635	705	155	20
600	590	749	820	175	20
700	676	864*	925	200	28*
800	771	978*	1060	240	28*
900*	870	1086	1170	240	32
1000	970	1200	1290	300	36
1200*	1170	1422	1510	300	44
