Jenis bayaran:L/C,T/T,Paypal,D/A,D/P
Incoterm:FOB,CFR,CIF
Pesanan minimum:1
Pengangkutan:Ocean,Air,Land
$0.1-1 /
Jenama: HY atau OEM
Model No.: F1E2S02
Material: CPVC
Connection: Welding
Color: Light Grey
Temperature: 0 To 95 Degree Celsius
HARDNESS: Hard Tube
Pressure: 1.6Mpa
Warranty Period: 3 Years
Tempat Asal: China
Pengangkutan: Ocean,Air,Land
Jenis bayaran: L/C,T/T,Paypal,D/A,D/P
Incoterm: FOB,CFR,CIF

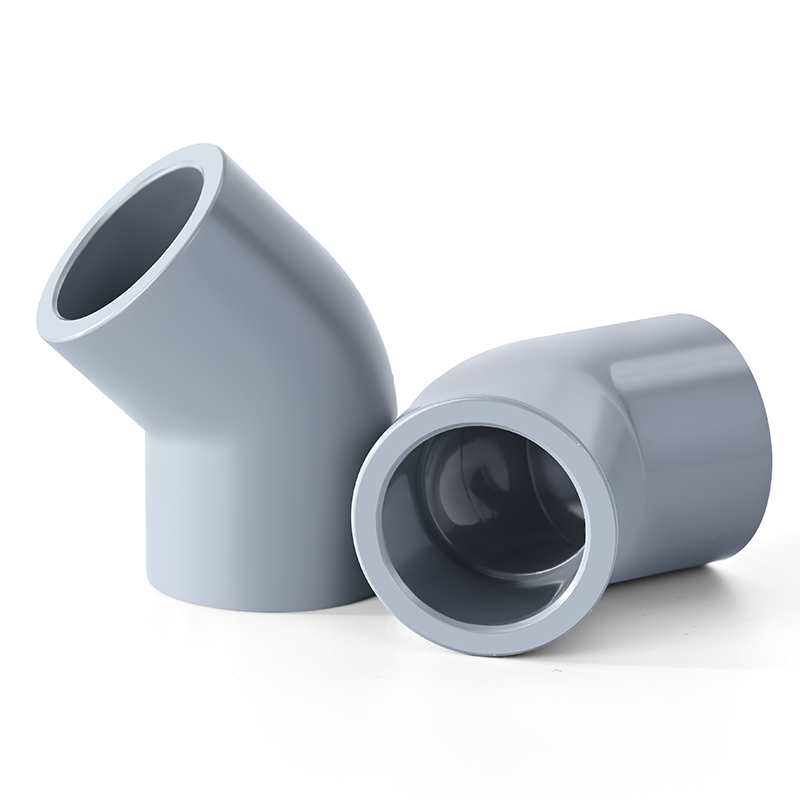

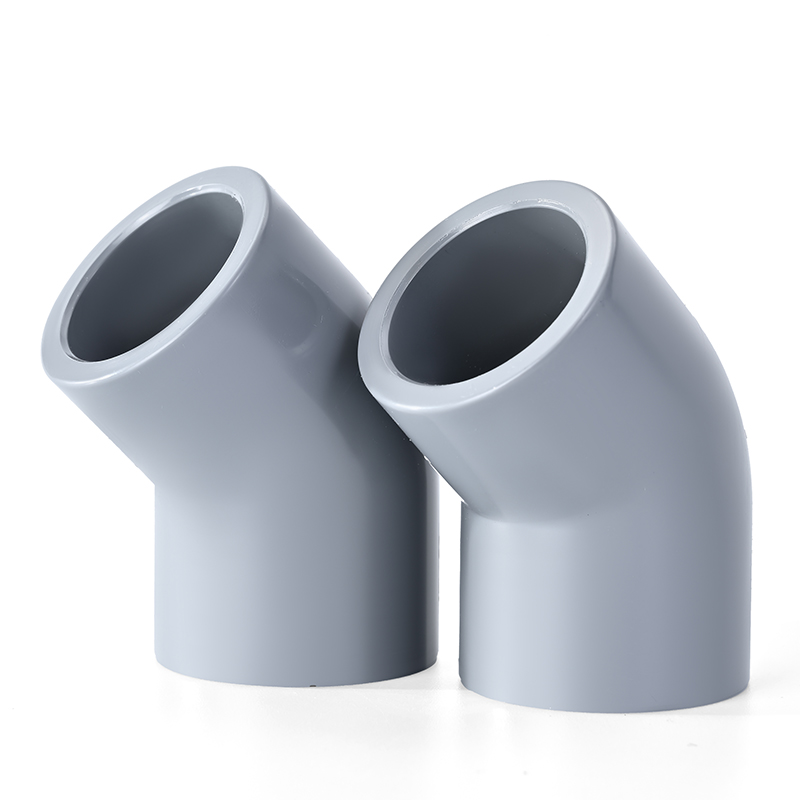

Siku CPVC 45 Darjah premium kami, juga dipanggil cpvc 45 dan bahagian penting rangkaian pemasangan tukang paip cpvc, direka bentuk untuk perubahan arah 45° yang lancar dalam sistem saluran paip CPVC. Dihasilkan daripada CPVC kalis kakisan gred tinggi, ia memastikan sambungan kalis bocor, meminimumkan rintangan aliran dan mempunyai ketepatan dimensi yang tepat untuk pemasangan yang mudah. Sesuai untuk aplikasi paip kediaman, komersial dan industri ringan.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

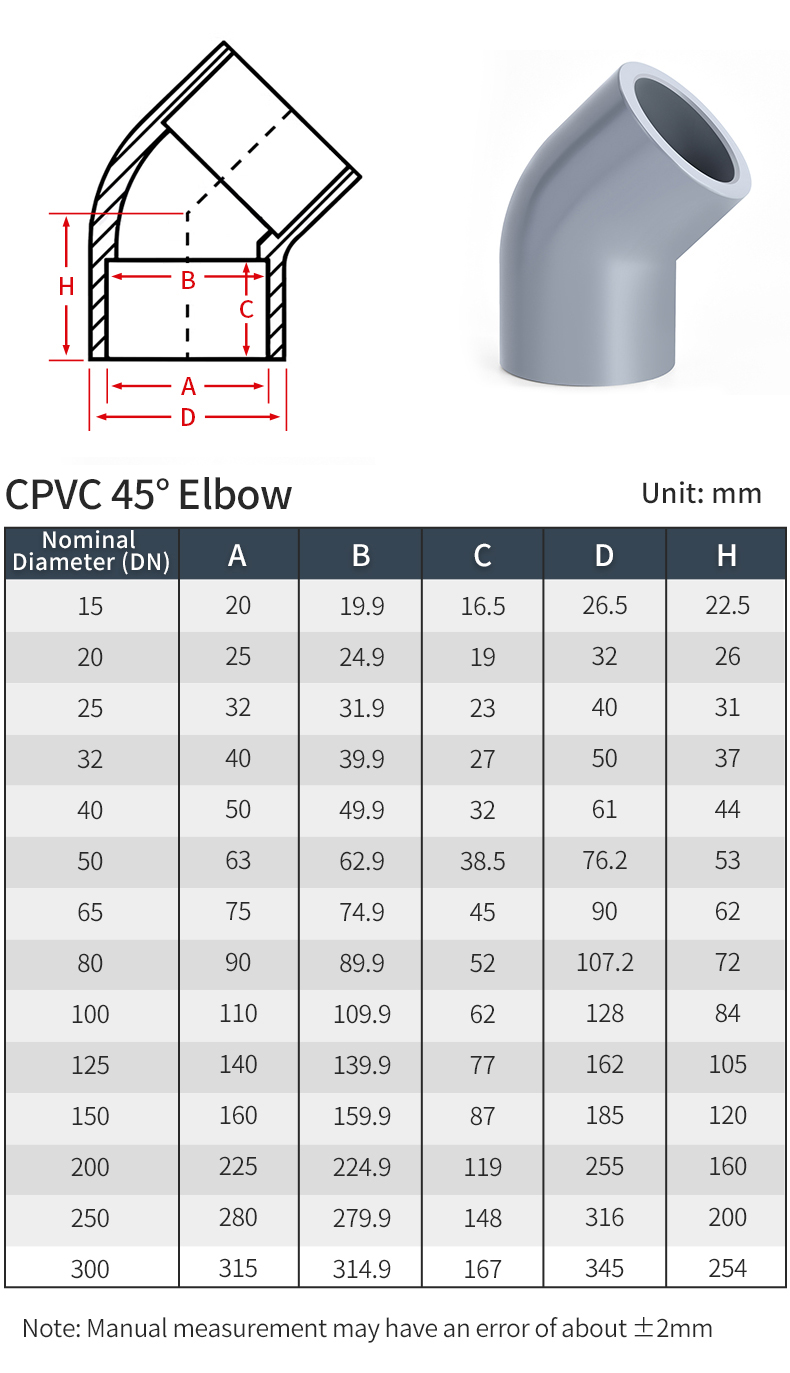

| Key Word: | CPVC 45 Degree Elbow DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC(PVC-C) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Sebagai Pengeluar Borong CPVC 45 Degree Elbow PN16 terkemuka, kami menyediakan penyelesaian kejuruteraan ketepatan untuk pengangkutan bendalir suhu tinggi dan tekanan tinggi. CPVC 45 Degree Elbow PN16 kami direka khusus untuk sistem yang meminimumkan pergolakan adalah kritikal. Dengan menawarkan Kecekapan Aliran Siku 45 Darjah CPVC yang unggul, kelengkapan ini mengurangkan penurunan tekanan dan penggunaan tenaga dalam susun atur paip industri yang kompleks.
