Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Pesanan minimum:1
Pengangkutan:Ocean,Land,Air
$0.1-1 /
Jenama: HY atau OEM
Model No.: F1E2S02
Warranty Period: 3 Years
Tempat Asal: China
Connection Method: Welding
Material: CPVC
Connection: Welding
Pressure: 1.6Mpa
Color: Light Grey
Temperature: 0 To 95 Degree Celsius
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF

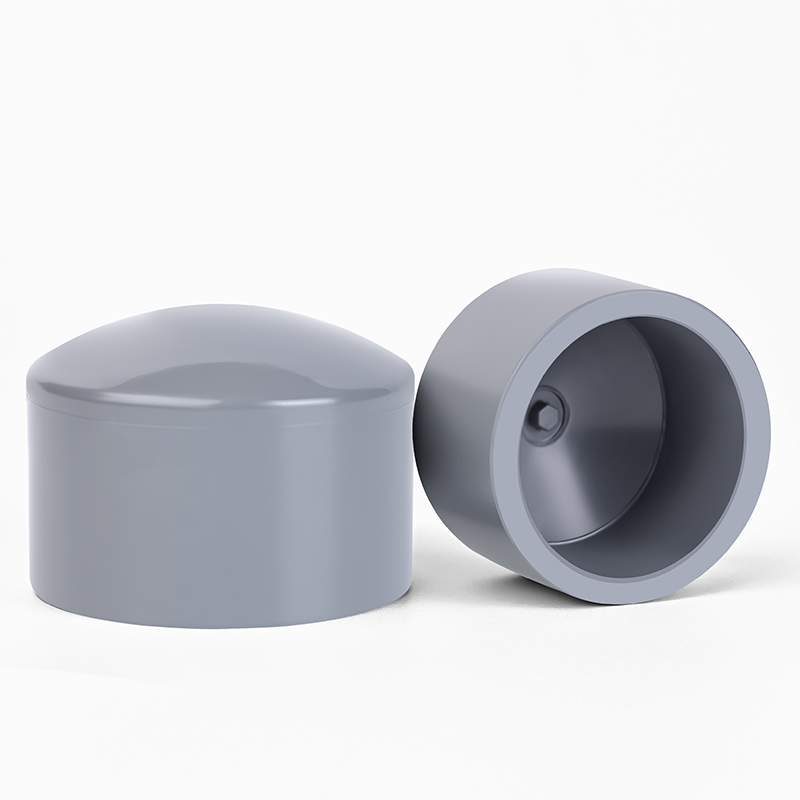

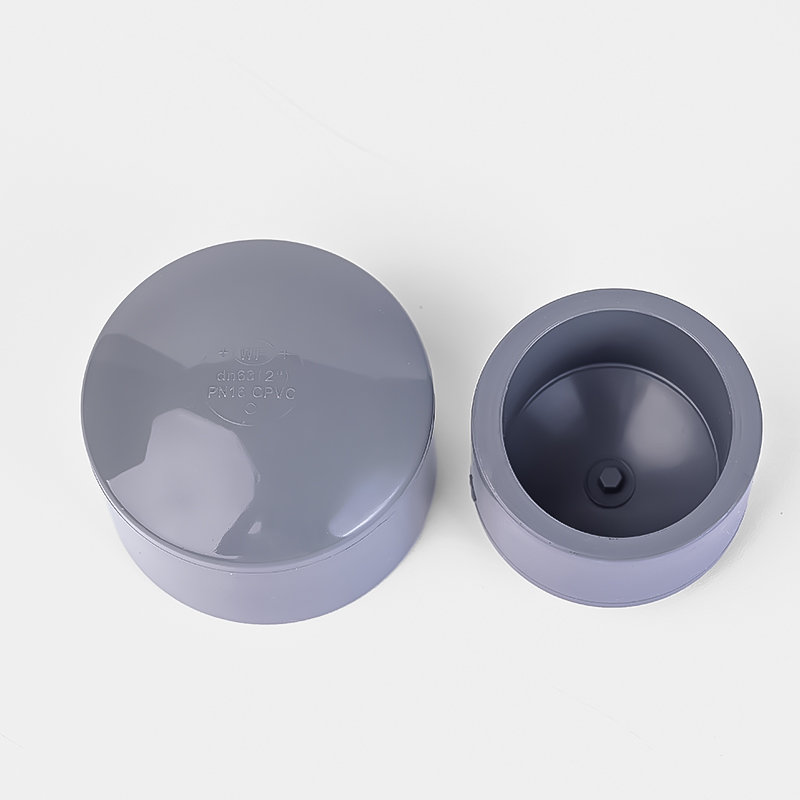

Penutup Hujung CPVC kami yang boleh dipercayai, termasuk varian standard CPVC End Cap Din kejuruteraan ketepatan, ialah komponen utama Kelengkapan Paip CPVC. Dihasilkan daripada CPVC kalis kakisan gred tinggi, ia menyediakan pengedap yang ketat dan kalis bocor untuk menutup hujung paip, memastikan pengekalan tekanan dan mencegah pencemaran. Dengan ketepatan dimensi yang tepat untuk pemasangan yang mudah, ia sesuai untuk sistem paip industri kediaman, komersial dan ringan yang memerlukan penamatan paip selamat.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | CPVC User-Friendly End Cap DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||

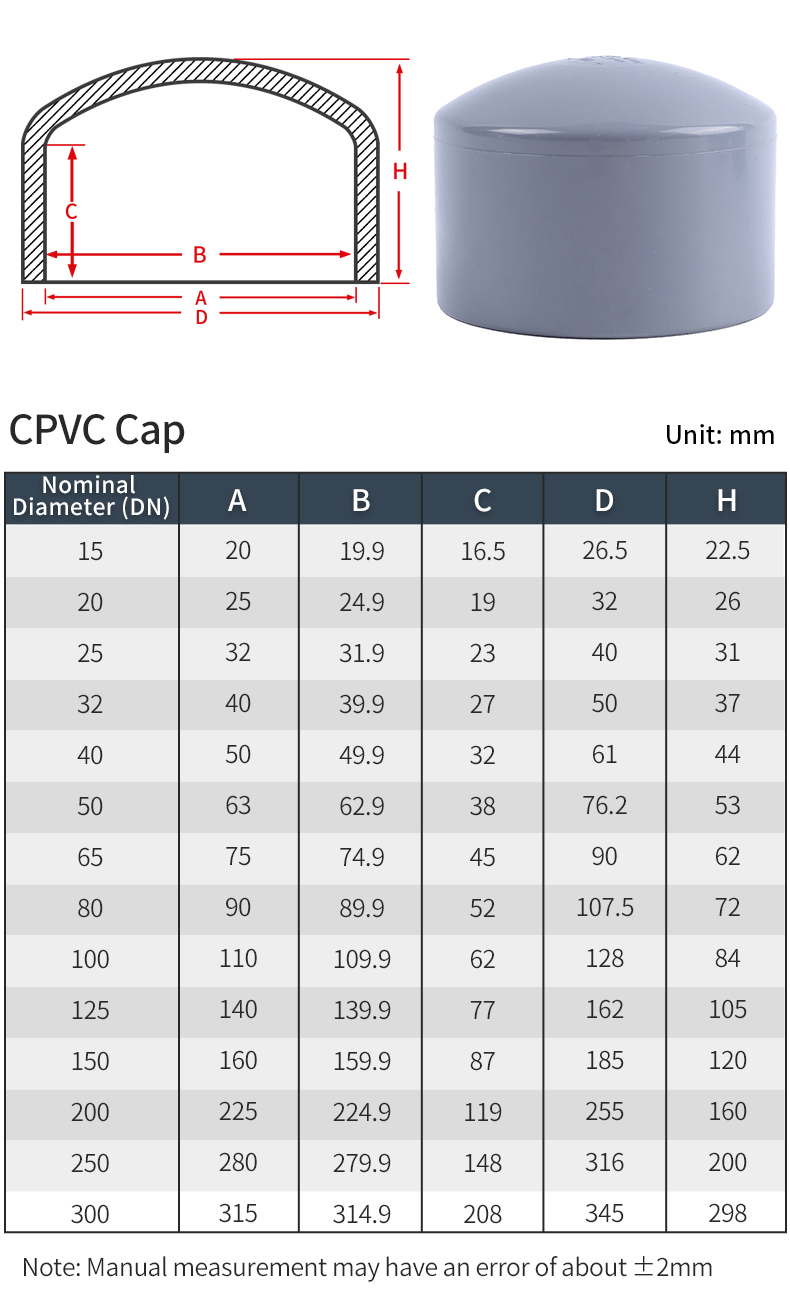

| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | 0 To 95 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Sebagai Pembekal Penutup Akhir CPVC Tersuai yang dipercayai untuk Projek , kami menyediakan penyelesaian pengedap berprestasi tinggi yang direka untuk persekitaran haba dan kimia yang paling mencabar. Penutup Paip CPVC PN16 kami dibentuk dengan ketepatan untuk menyediakan pengedap kekal dan kalis kebocoran di hujung saluran paip anda, mengekalkan integriti struktur penuh di bawah tekanan kerja 1.6 MPa yang berterusan.
