Jiaxing Huiya Pipeline Technology Co., Ltd
Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Pesanan minimum:1
Pengangkutan:Ocean,Land,Air
$0.5000-1 /
Jenama: HY atau OEM
Model No: F1FS01
Color: Light Grey
Material: CPVC
Connection: Flange
HARDNESS: Hard Tube
Temperature: 0 To 95 Degree Celsius
Warranty Period: 3 Years
Tempat Asal: China
Kaedah Sambungan: Bebibir
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF

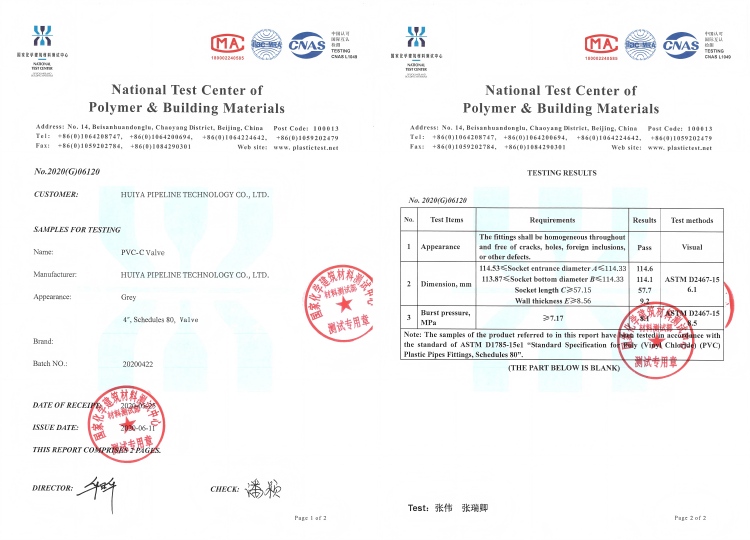

Sebagai Pembekal Bebibir CPVC Tersuai yang terulung untuk Projek , kami menyediakan penyelesaian paip berprestasi tinggi yang direka bentuk untuk persekitaran terma dan kimia yang paling mencabar. Bebibir Longgar CPVC kami menampilkan reka bentuk Batu Van khusus, menggabungkan hujung rintisan tugas berat dengan gelang penyandar berputar untuk memastikan integriti struktur maksimum pada 1.6 MPa.
| ANSI SCH80 CPVC van stone flange dimensions chart (Unit: mm/inch) | |||||||||||
| SIZE | D (mm/inch) | D1 (mm/inch) | C (mm/inch) | d (mm/inch) | d1 (mm/inch) | d2 (mm/inch) | H (mm/inch) | T (mm/inch) | I (mm/inch) | n-fe | |
| DN15 | 1/2"CPVC van stone flange | 95.0 / 3.74 | 30.6 / 1.20 | 60.5 / 2.38 | 15.0 / 0.59 | 21.54 / 0.85 | 21.23 / 0.84 | 26.0 / 1.02 | 14 / 0.55 | 22.5 / 0.89 | 4-15 |
| DN20 | 3/4"CPVC van stone flange | 105.0 / 4.13 | 36.0 / 1.42 | 69.9 / 2.75 | 20.0 / 0.79 | 26.87 / 1.06 | 26.57 / 1.05 | 29.5 / 1.16 | 15 / 0.59 | 25.0 / 0.98 | 4-15 |
| DN25 | 1"CPVC van stone flange | 125.0 / 4.92 | 43.8 / 1.72 | 79.5 / 3.13 | 25.0 / 0.98 | 33.65 / 1.32 | 33.27 / 1.31 | 32.2 / 1.27 | 16 / 0.63 | 28.7 / 1.13 | 4-19 |
| DN32 | 1-1/4"CPVC van stone flange | 140.0 / 5.51 | 52.6 / 2.07 | 89.0 / 3.50 | 32.0 / 1.26 | 42.42 / 1.67 | 42.04 / 1.65 | 38.5 / 1.52 | 16 / 0.63 | 31.7 / 1.25 | 4-19 |
| DN40 | 1-1/2"CPVC van stone flange | 150.0 / 5.91 | 60.7 / 2.39 | 98.5 / 3.88 | 40.0 / 1.57 | 48.56 / 1.91 | 48.11 / 1.90 | 40.5 / 1.59 | 18 / 0.71 | 35.0 / 1.38 | 4-19 |
| DN50 | 2"CPVC van stone flange | 165.0 / 6.50 | 74.8 / 2.94 | 120.7 / 4.75 | 51.0 / 2.01 | 60.63 / 2.39 | 60.17 / 2.37 | 45.0 / 1.77 | 20 / 0.79 | 38.0 / 1.50 | 4-19 |
| DN65 | 2-1/2"CPVC van stone flange | 185.0 / 7.28 | 89.6 / 3.53 | 139.7 / 5.50 | 63.0 / 2.48 | 73.38 / 2.89 | 72.85 / 2.87 | 51.0 / 2.01 | 24 / 0.94 | 44.0 / 1.73 | 4-19 |
| DN80 | 3"CPVC van stone flange | 200.0 / 7.87 | 106.5 / 4.19 | 152.4 / 6.00 | 81.0 / 3.19 | 89.31 / 3.52 | 88.70 / 3.50 | 55.0 / 2.17 | 26 / 1.02 | 47.5 / 1.87 | 8-19 |
| DN100 | 4"CPVC van stone flange | 228.0 / 9.00 | 133.0 / 5.24 | 190.5 / 7.50 | 102.0 / 4.02 | 114.76 / 4.52 | 114.10 / 4.50 | 64.0 / 2.52 | 28 / 1.10 | 57.5 / 2.26 | 8-19 |
| DN125 | 5"CPVC van stone flange | 254.0 / 10.00 | 160.1 / 6.30 | 215.9 / 8.50 | 125.0 / 4.92 | 141.81 / 5.58 | 141.00 / 5.55 | 81.5 / 3.21 | 28 / 1.10 | 66.0 / 2.60 | 8-22 |
| DN150 | 6"CPVC van stone flange | 284.0 / 11.18 | 187.1 / 7.37 | 241.3 / 9.50 | 156.0 / 6.14 | 168.83 / 6.65 | 168.00 / 6.61 | 86.7 / 3.41 | 32 / 1.26 | 76.5 / 3.01 | 8-22 |
| DN200 | 8"CPVC van stone flange | 343.0 / 13.50 | 247.1 / 9.73 | 298.5 / 11.75 | 204.0 / 8.03 | 219.84 / 8.65 | 218.70 / 8.61 | 130.0 / 5.12 | 35 / 1.38 | 117.3 / 4.62 | 8-22 |
| DN250 | 10"CPVC van stone flange | 406.0 / 16.00 | 305.0 / 12.01 | 362.0 / 14.25 | 256.0 / 10.08 | 273.81 / 10.78 | 272.67 / 10.74 | 159.0 / 6.26 | 42 / 1.65 | 145.0 / 5.71 | 12-25 |
| DN300 | 12"CPVC van stone flange | 483.0 / 19.02 | 346.0 / 13.62 | 432.0 / 17.01 | 307.0 / 12.09 | 324.61 / 12.78 | 323.47 / 12.74 | 190.0 / 7.48 | 52 / 2.05 | 171.0 / 6.73 | 12-25 |
| DIN PN16 CPVC van stone flange dimensions chart (Unit: mm) | ||||||||||||
| SIZE | D | D1 | C1 | C2 | d | d1 | d2 | H | T | I | n-fe | |
| DN15 | 20mmCPVC van stone flange | 95.0 | 30.6 | 60.0 | 70.0 | 15.0 | 20.3 | 20.0 | 26.0 | 14 | 22.0 | 4-15 |
| DN20 | 25mmCPVC van stone flange | 105.0 | 36.0 | 70.0 | 75.0 | 20.0 | 25.3 | 25.0 | 29.5 | 15 | 23.4 | 4-15 |
| DN25 | 32mmCPVC van stone flange | 125.0 | 43.8 | 80.0 | 90.0 | 25.0 | 32.3 | 32.0 | 32.2 | 16 | 28.7 | 4-15 |
| DN32 | 40mmCPVC van stone flange | 140.0 | 52.6 | 90.0 | 100.0 | 32.0 | 40.4 | 40.0 | 38.5 | 16 | 32.0 | 4-19 |
| DN40 | 50mmCPVC van stone flange | 150.0 | 60.7 | 99.0 | 110.0 | 43.0 | 50.4 | 50.0 | 40.5 | 18 | 35.0 | 4-19 |
| DN50 | 63mmCPVC van stone flange | 165.0 | 74.8 | 120.0 | 125.0 | 55.0 | 63.4 | 63.0 | 45.0 | 20 | 38.2 | 4-19 |
| DN65 | 75mmCPVC van stone flange | 185.0 | 89.6 | 140.0 | 145.0 | 65.0 | 75.5 | 75.0 | 51.0 | 24 | 45.0 | 4-19 |
| DN80 | 90mmCPVC van stone flange | 200.0 | 106.5 | 150.0 | 160.0 | 80.0 | 90.5 | 90.0 | 55.0 | 26 | 48.0 | 8-19 |
| DN100 | 110mmCPVC van stone flange | 228.0 | 133.0 | 175.0 | 191.0 | 100.0 | 110.5 | 110.1 | 64.0 | 29 | 57.5 | 8-19 |
| DN125 | 140mmCPVC van stone flange | 254.0 | 160.1 | 210.0 | 216.0 | 125.0 | 140.6 | 140.1 | 81.5 | 28 | 66.8 | 8-22 |
| DN150 | 160mmCPVC van stone flange | 284.0 | 187.1 | 240.0 | 242.0 | 154.0 | 160.6 | 160.1 | 86.7 | 32 | 76.0 | 8-23 |
| DN200 | 225mmCPVC van stone flange | 343.0 | 247.1 | 295.0 | 299.0 | 200.0 | 225.8 | 225.1 | 130.0 | 35 | 117.0 | 8-23 |
| DN250 | 250mmCPVC van stone flange | 406.0 | 305.0 | 355.0 | 362.0 | 240.0 | 250.8 | 250.1 | 159.0 | 42 | 131.0 | 12-25 |
| DN300 | 280mmCPVC van stone flange | 406.0 | 305.0 | 355.0 | 362.0 | 250.0 | 281.5 | 280.1 | 159.0 | 42 | 144.5 | 12-25 |
| DN350 | 315mmCPVC van stone flange | 483.0 | 344.6 | 410.0 | 432.0 | 307.0 | 317.0 | 315.1 | 190.0 | 52 | 172.0 | 12-25 |
