Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CIF,CFR
Pesanan minimum:1
Pengangkutan:Ocean,Land,Air
$0.1-1 /
Jenama: HY atau OEM
Model No.: P10116
Material: PVC
Jenis: Paip termoplastik
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
Kekuatan Tegangan: (30 ~ 40) MPA
Warna: Kelabu gelap
Pressure: 1.6Mpa
Tempat Asal: China
Processing Service: Moulding
Temperature: -15 to 55 Degree Celsius
Hardness: Hard Tube
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CIF,CFR

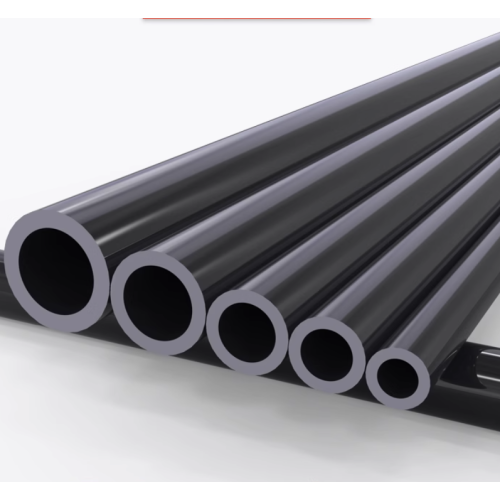

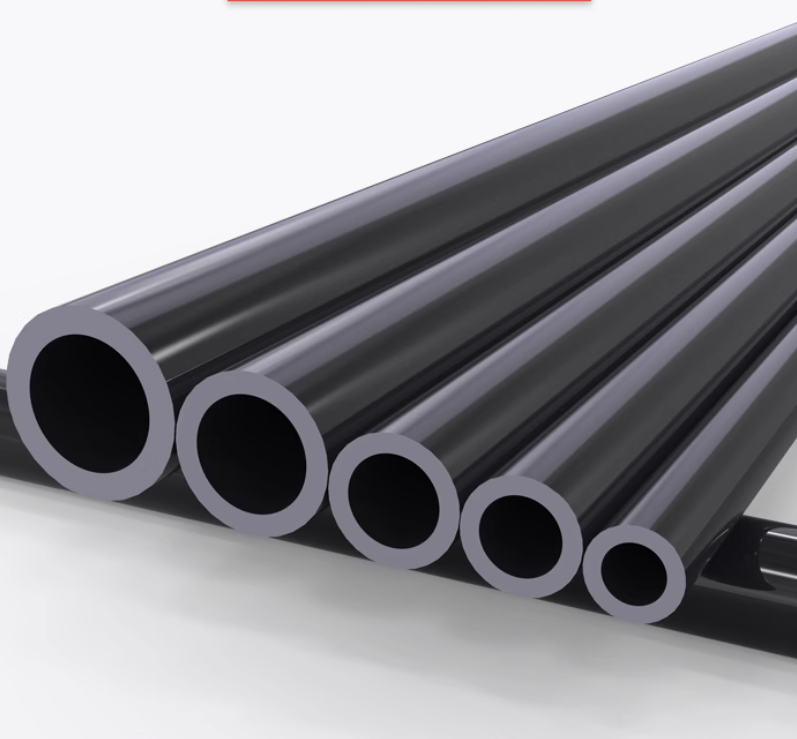

Paip upvc berkualiti tinggi kami, termasuk varian paip upvc hitam tahan lama, direka bentuk khusus sebagai paip upvc untuk bekalan air dan aplikasi pemindahan cecair serba boleh. Ia mempunyai struktur yang tidak toksik dan tahan kakisan yang memastikan aliran air yang bersih dan lancar sambil menentang kerosakan kimia dan luluhawa. Tersedia dalam pelbagai saiz, paip ringan ini mudah dipotong, dipasang dan diselenggara, menjadikannya ideal untuk saluran air kediaman, paip komersial dan sistem pengairan pertanian.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | Rigid Upvc Pressure Pipe Black Unplasticised Pvc Pipe For Water Supply | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8061/8062,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| DIN PN10 8061 Standard UPVC Pipe size&price table | |||||||
| SIZE | Outer diameter A (mm) |
Inner diameter B (mm) |
Thickness C (mm) |
Tolera | Price/m ($) | Length/piece （m） |
|
| DN15 | 20mm upvc pipe | 20.00 | 16.00 | 2.00 | 0.40 | 0.31 | 4 |
| DN20 | 25mm upvc pipe | 25.00 | 21.00 | 2.00 | 0.40 | 0.40 | 4 |
| DN25 | 32mm upvc pipe | 32.00 | 27.20 | 2.40 | 0.40 | 0.62 | 4 |
| DN32 | 40mm upvc pipe | 40.00 | 36.00 | 2.00 | 0.40 | 0.65 | 4 |
| DN40 | 50mm upvc pipe | 50.00 | 45.20 | 2.40 | 0.50 | 0.99 | 4 |
| DN50 | 63mm upvc pipe | 63.00 | 57.00 | 3.00 | 0.50 | 1.55 | 4 |
| DN65 | 75mm upvc pipe | 75.00 | 67.80 | 3.60 | 0.60 | 2.21 | 4 |
| DN80 | 90mm upvc pipe | 90.00 | 81.40 | 4.30 | 0.70 | 3.18 | 4 |
| DN100 | 110mm upvc pipe | 110.00 | 99.40 | 5.30 | 0.80 | 4.76 | 4 |
| DN125 | 140mm upvc pipe | 140.00 | 126.60 | 6.70 | 0.90 | 7.67 | 4 |
| DN150 | 160mm upvc pipe | 160.00 | 144.60 | 7.70 | 1.00 | 10.14 | 4 |
| DN200 | 225mm upvc pipe | 225.00 | 203.40 | 10.80 | 1.30 | 19.93 | 4 |
| DN250 | 280mm upvc pipe | 280.00 | 253.20 | 13.40 | 1.60 | 30.78 | 4 |
| DN300 | 315mm upvc pipe | 315.00 | 285.00 | 15.00 | 1.70 | 38.80 | 4 |
| DN350 | 355mm upvc pipe | 355.00 | 321.20 | 16.90 | 1.90 | 65.03 | 4 |
| DN400 | 400mm upvc pipe | 400.00 | 361.80 | 19.10 | 2.20 | 72.15 | 4 |
| DIN PN16 8061 Standard UPVC Pipe size&price table | |||||||
| SIZE | Outer diameter A (mm) |
Inner diameter B (mm) |
Thickness C (mm) |
Tolera | Price/m ($) | Length/piece （m） |
|
| DN15 | 20mm upvc pipe | 20 | 15 | 2.3 | +0.4 | 0.35 | 4 |
| DN20 | 25mm upvc pipe | 25 | 19 | 2.8 | +0.4 | 0.54 | 4 |
| DN25 | 32mm upvc pipe | 32 | 25 | 3.6 | +0.4 | 0.88 | 4 |
| DN32 | 40mm upvc pipe | 40 | 34 | 3.0 | +0.4 | 0.95 | 4 |
| DN40 | 50mm upvc pipe | 50 | 45 | 2.4 | +0.5 | 1.47 | 4 |
| DN50 | 63mm upvc pipe | 63 | 57 | 3.0 | +0.5 | 2.36 | 4 |
| DN65 | 75mm upvc pipe | 75 | 68 | 3.6 | +0.6 | 3.34 | 4 |
| DN80 | 90mm upvc pipe | 90 | 81 | 4.3 | +0.7 | 4.80 | 4 |
| DN100 | 110mm upvc pipe | 110 | 99 | 5.3 | +0.8 | 7.05 | 4 |
| DN125 | 140mm upvc pipe | 140 | 127 | 6.7 | +0.9 | 11.46 | 4 |
| DN150 | 160mm upvc pipe | 160 | 145 | 7.7 | +1.0 | 14.99 | 4 |
| DN200 | 225mm upvc pipe | 225 | 203 | 10.8 | +1.3 | 29.72 | 4 |
| DN250 | 280mm upvc pipe | 280 | 253 | 13.4 | +1.6 | 45.86 | 4 |
| DN300 | 315mm upvc pipe | 315 | 285 | 15.0 | +1.7 | 58.20 | 4 |
| DN350 | 355mm upvc pipe | 355 | 321 | 16.9 | +1.9 | 84.95 | 4 |
| DN400 | 400mm upvc pipe | 400 | 362 | 19.1 | +2.2 | 101.65 | 4 |
