Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Pesanan minimum:1 Piece/Pieces
Pengangkutan:Ocean,Air,Land
$0.1-1 /Piece/Pieces
Jenama: HY atau OEM
Model No.: F1CS01
Material: PVC
Jenis: Paip termoplastik
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
Kekuatan Tegangan: (30 ~ 40) MPA
Warna: Kelabu gelap
Pressure: 1.6Mpa
Perkhidmatan Waranti: 3 tahun
Tempat Asal: China
Temperature: -15 to 55 Degree Celsius
Pengangkutan: Ocean,Air,Land
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

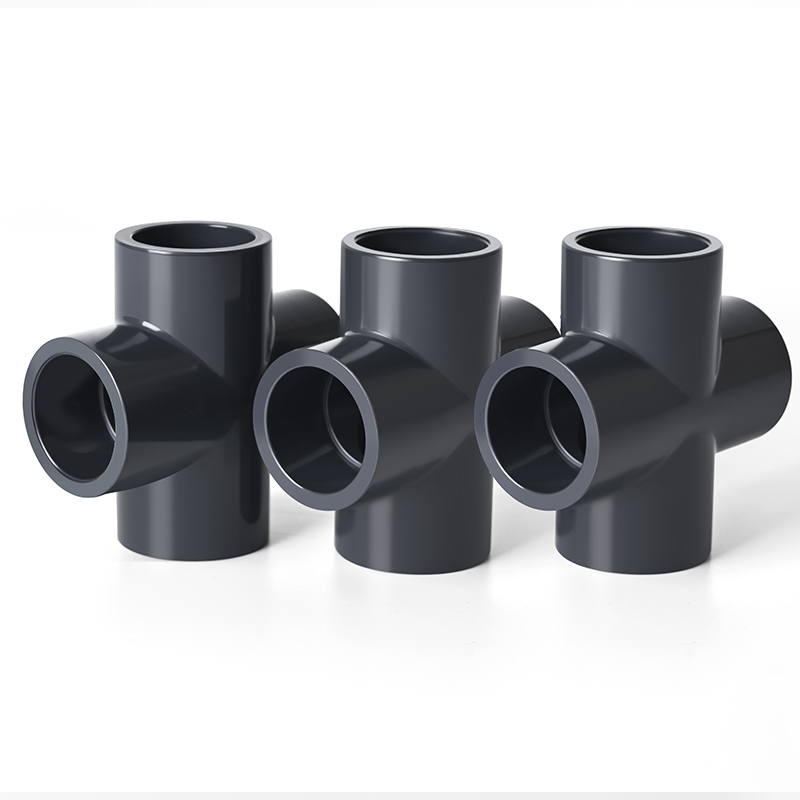

| Key Word: | UPVC Cross Fitting DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
Dibina untuk bertahan, Salib PVC Tugas Berat kami untuk Sistem Tekanan Tinggi menyediakan penyelesaian yang boleh dipercayai untuk aplikasi perindustrian di mana tekanan 1.6 MPa yang berterusan diperlukan. Untuk membantu dengan reka bentuk sistem dan keperluan kejuruteraan anda, sila rujuk Carta Dimensi PVC Cross PN16 kami di bawah, yang menyediakan spesifikasi teknikal yang komprehensif untuk julat penuh saiz metrik kami.
| PN16 PVC cross dimensions chart (Unit: mm) | |||||||
| Nominal | Socket Type | Structural Diameter | |||||
| SIZE | d1 | d2 | I | D | d | L | |
| DN15 | 20mm PVC cross | 20.3 | 20.0 | 18.0 | 29.5 | 17.0 | 70.0 |
| DN20 | 25mm PVC cross | 25.3 | 25.0 | 20.0 | 35.0 | 23.0 | 82.0 |
| DN25 | 32mm PVC cross | 32.3 | 32.0 | 23.0 | 43.0 | 29.0 | 94.0 |
| DN32 | 40mm PVC cross | 40.4 | 40.0 | 27.0 | 52.5 | 37.0 | 108.5 |
| DN40 | 50mm PVC cross | 50.4 | 50.0 | 32.0 | 61.0 | 47.0 | 122.0 |
| DN50 | 63mm PVC cross | 63.4 | 63.0 | 38.0 | 75.3 | 60.0 | 143.0 |
| DN65 | 75mm PVC cross | 75.5 | 75.0 | 44.0 | 90.0 | 72.0 | 166.3 |
| DN80 | 90mm PVC cross | 90.5 | 90.0 | 51.0 | 108.0 | 87.1 | 196.5 |
| DN100 | 110mm PVC cross | 110.5 | 110.1 | 61.0 | 131.0 | 106.1 | 235.0 |
| DN125 | 140mm PVC cross | 140.6 | 140.1 | 76.0 | 167.0 | 133.0 | 298.5 |
| DN150 | 160mm PVC cross | 160.6 | 160.1 | 86.0 | 191.2 | 154.0 | 332.0 |
| Industry Type PVC CROSS DIN PN16 Packing Table | |||
| Size | Qty/Ctn | Weight (g/pc) | Carton Size (cm) |
| DN15(φ20) | 600 | 30.1 | 480*360*360 |
| DN20(φ25) | 432 | 46.65 | 480*360*360 |
| DN25(φ32) | 232 | 78.52 | 480*360*360 |
| DN32(φ40) | 128 | 134.65 | 420*400*400 |
| DN40(φ50) | 72 | 229.73 | 475*385*360 |
| DN50(φ63) | 56 | 388.93 | 550*460*380 |
| DN65(φ75) | 30 | 598.93 | 460*350*515 |
| DN80(φ90) | 24 | 904.02 | 645*395*400 |
| DN100(φ110) | 12 | 1555.47 | 469*467*388 |
| DN125(φ140) | 6 | 2963.09 | 505*310*610 |
| DN150(φ160) | 4 | 4298.24 | 687*389*354 |
| DN200(φ225) | 2 | 9450 | |
