Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Pesanan minimum:1 Piece/Pieces
Pengangkutan:Ocean,Air,Land
$0.1-1 /Piece/Pieces
Jenama: HY atau OEM
Model No.: F1US01
Tempat Asal: China
Bahan: PVC, Pvc
Jenis: Paip termoplastik
Water Absorption: ＜0.01%
Contraction: 1.0%~2.5%
Kekuatan Tegangan: (30 ~ 40) MPA
Warna: Kelabu gelap
Pressure: 1.6Mpa
Perkhidmatan Waranti: 3 tahun
Pengangkutan: Ocean,Air,Land
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF
Kesatuan PVC berprestasi tinggi kami, juga dirujuk sebagai pemasangan kesatuan pvc dan paip kesatuan pvc, adalah komponen penting untuk pengurusan saluran paip yang fleksibel. Ia membolehkan sambungan pantas, pembongkaran dan penyelenggaraan paip PVC tanpa memotong talian, menampilkan benang bermesin ketepatan atau sambungan gelincir yang membentuk pengedap kalis bocor yang ketat. Diperbuat daripada PVC tahan kakisan, ia memerlukan alat yang minimum untuk pemasangan dan sesuai untuk paip kediaman, sistem pengairan, dan projek pemindahan bendalir komersial ringan.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | UPVC Pipe Fitting Union DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||

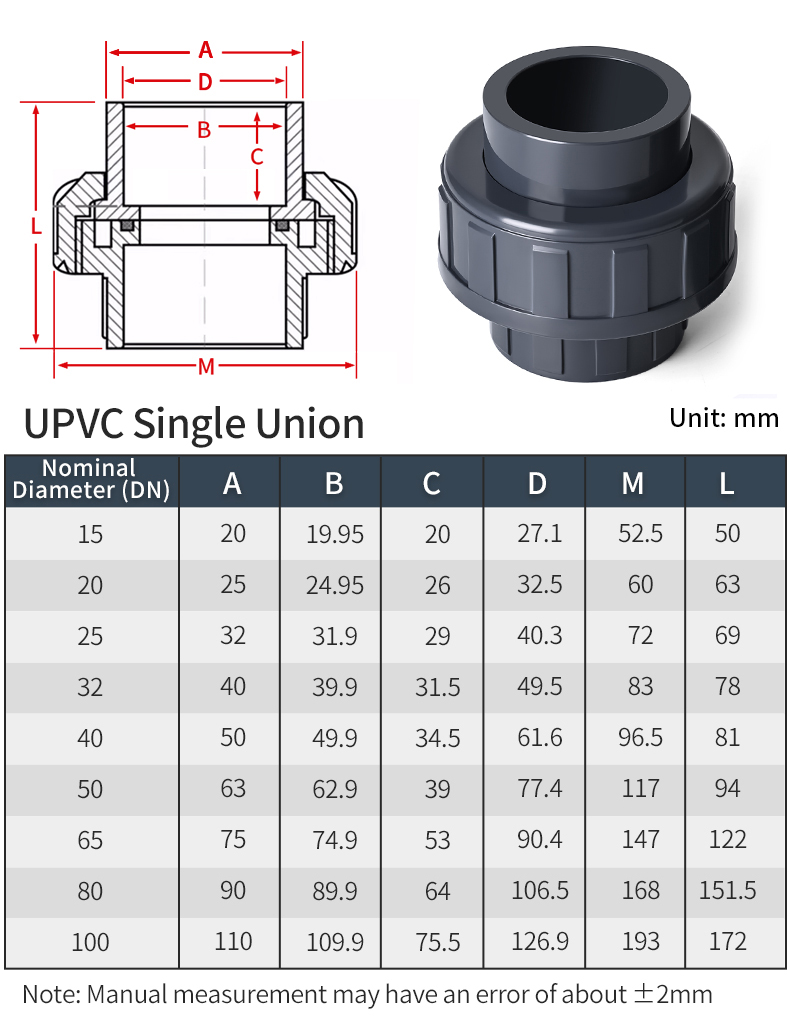

| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Perlukan sambungan dan penyelenggaraan paip yang mudah? Kesatuan PVC tahan lama kami—juga dipanggil pemasangan kesatuan pvc dan paip kesatuan pvc—menyampaikan pengedap yang ketat dan kalis bocor, tahan kakisan dan membenarkan pembongkaran tanpa alatan untuk semua projek paip dan pengairan!
