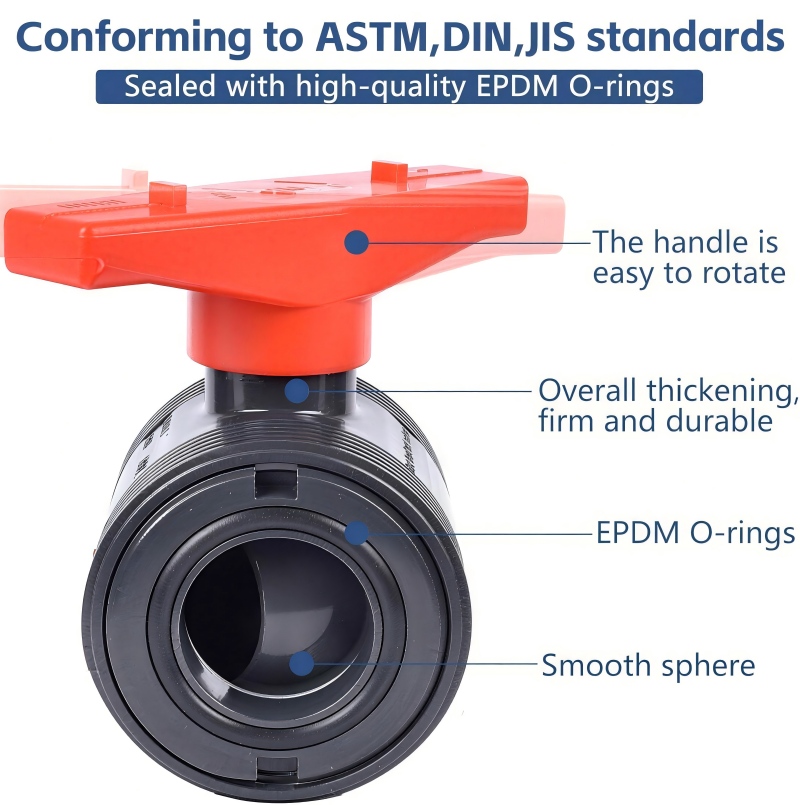

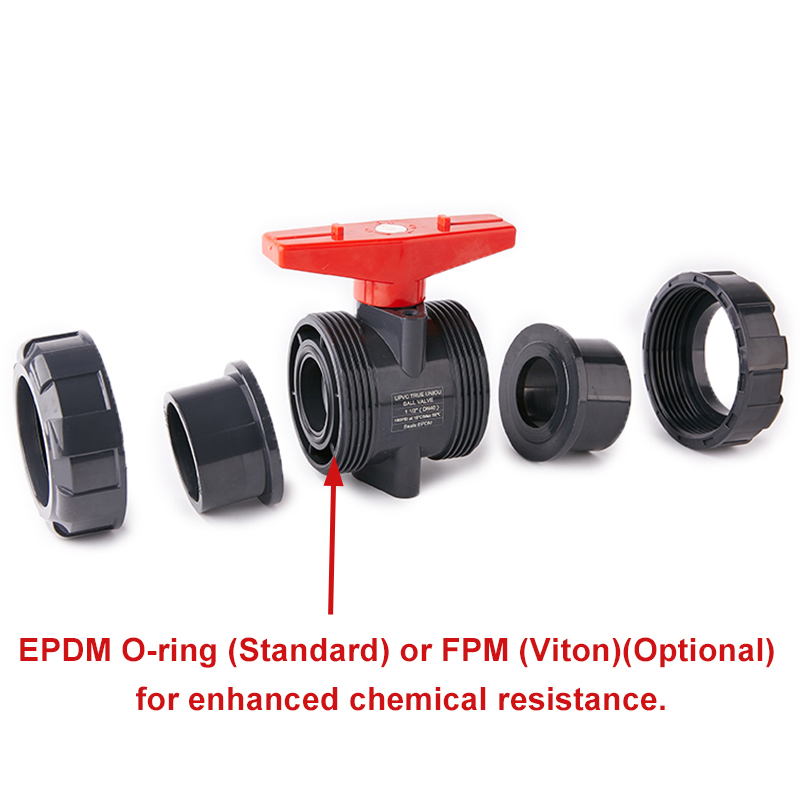

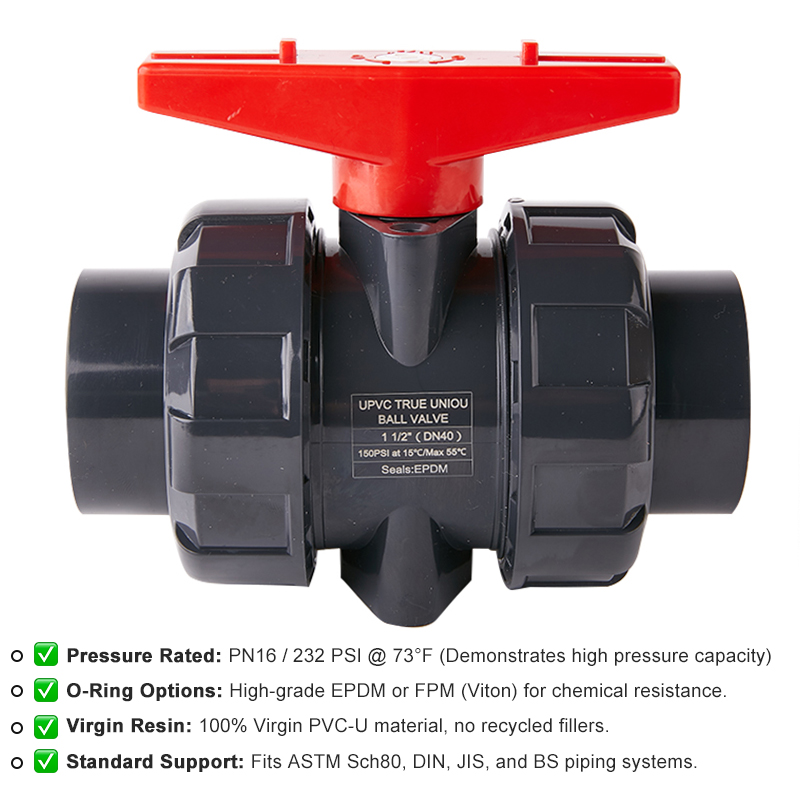

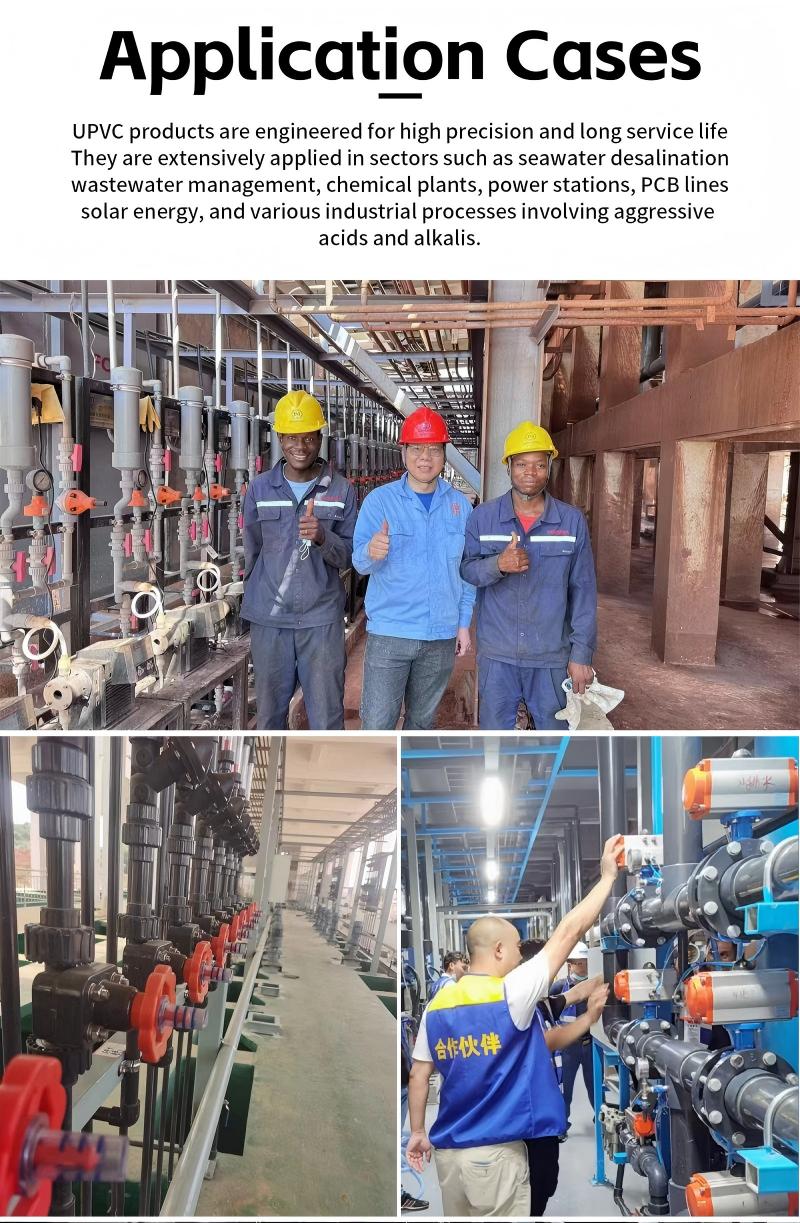

| PVC-U True Union Ball Valve（ANSI/DIN/JIS Standard） |
||||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size: | DN15 to100（1/2 in to 4 in） | ||
| Color: | Grey | |||
| Standard: | DIN,ANSI,JIS | |||
| Seals: | EPDM or FPM | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.100% Leak Tested: Every valve undergoes a 1.5x working pressure hydrostatic test before shipping. | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 8481804090 | |||
| Certificate: | SGS | |||

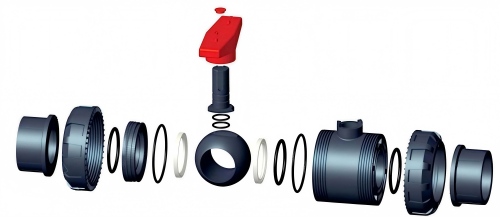

| S/No. | Item | Material | Q’ty | |
| 3\4\8\9 | 0-Ring | EPDM/VITON | 7 | PCS |
| 01 | Socket | UPVC | 2 | PCS |
| 02 | Screw Nut | UPVC | 2 | PCS |
| 06 | Stem | UPVC | 1 | PCS |
| 07 | Handle | ABS | 1 | PCS |
| 10 | Seat Carrier | UPVC | 1 | PCS |
| 11 | Seat | PTFE | 2 | PCS |
| 12 | Ball | UPVC | 1 | PCS |
| 13 | Body | UPVC | 1 | PCS |
| SIZE | d | d1 | d2 | |||||||||
| ANSI | DIN | JIS | ANSI | DIN | JIS | |||||||
| 1/2”(15) | 15 | 21.40 | 20.25 | 22.30 | 21.25 | 20.05 | 21.85 | |||||
| 3/4”(20) | 20 | 26.75 | 25.25 | 26.30 | 26.58 | 25.05 | 25.85 | |||||
| 1”(25) | 25 | 33.52 | 32.25 | 32.33 | 33.28 | 32.05 | 31.85 | |||||
| 1-1/4”(32) | 32 | 42.28 | 40.25 | 38.43 | 42.05 | 40.05 | 37.85 | |||||
| 1-1/2”(40) | 40 | 48.40 | 50.25 | 48.46 | 48.12 | 50.05 | 47.75 | |||||
| 2”(50) | 50 | 60.45 | 63.25 | 60.56 | 60.18 | 63.05 | 59.75 | |||||
| 2-1/2”(65) | 63 | 73.30 | 75.25 | 76.60 | 72.85 | 75.05 | 75.87 | |||||
| 3”(80) | 75 | 89.25 | 90.35 | 89.60 | 88.70 | 90.05 | 88.83 | |||||
| 4”(100) | 90 | 114.60 | 110.35 | 114.70 | 114.10 | 110.05 | 113.98 | |||||
| UNIT:MM | ||||||||||||

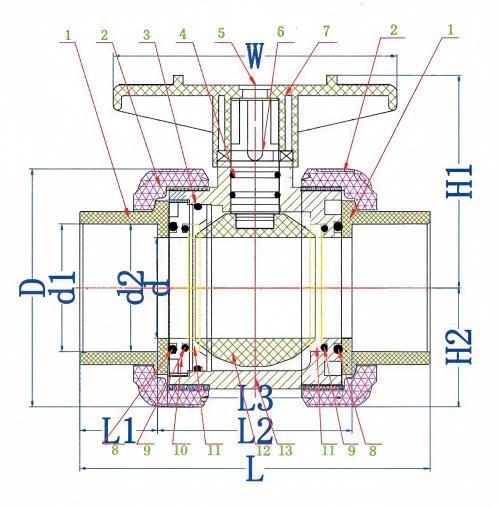

| SIZE | D | L | L1 | L2 | L3 | W | H1 | H2 | F | Operating torque(N.M) | |||||
| 1/2”(15) | 54.00 | 106.00 | 23.00 | 60.00 | 52.00 | 84.00 | 52.50 | 27.50 | 31.00 | 2.0 | |||||
| 3/4”(20) | 63.00 | 114.00 | 26.00 | 62.00 | 54.00 | 90.00 | 59.00 | 32.00 | 33.00 | 2.5 | |||||
| 1”(25) | 73.50 | 128.00 | 29.00 | 70.00 | 62.00 | 106.00 | 67.50 | 37.25 | 40.00 | 4.0 | |||||
| 1-1/4”(32) | 84.50 | 144.00 | 33.00 | 78.00 | 70.00 | 116.00 | 77.50 | 42.75 | 52.00 | 5.0 | |||||
| 1-1/2”(40) | 98.00 | 158.50 | 35.50 | 87.50 | 79.50 | 128.00 | 90.00 | 50.00 | 52.00 | 7.5 | |||||
| 2”(50) | 118.00 | 172.00 | 38.50 | 95.00 | 85.00 | 140.00 | 106.00 | 60.00 | 70.00 | 8.5 | |||||
| 2-1/2”(65) | 150.00 | 278.00 | 64.50 | 144.50 | 132.50 | 198.00 | 136.50 | 76.50 | 84.00 | 13 | |||||
| 3”(80) | 169.00 | 310.00 | 70.00 | 166.00 | 150.00 | 218.00 | 149.50 | 86.00 | 84.00 | 16 | |||||
| 4”(100) | 190.00 | 352.00 | 84.00 | 181.00 | 157.00 | 235.00 | 166.00 | 98.00 | 121.00 | 25 | |||||
| Industry Type UPVC Ball Valve6 Packing Table | |||||
| Description | Size | Packing (Qty) | Weight (g/pcs) | Net Weight/KG | Packing Specification(mm) |
| UPVC Ball Valve | 1/2" (DN15) | 100 | 178.63 | 17.86 | 412*292*440 |
| 3/4" (DN20) | 75 | 241.07 | 18.08 | 462*327*372 | |
| 1" (DN25) | 48 | 385.63 | 18.51 | 436*316*417 | |
| 1-1/4" (DN32) | 36 | 560.63 | 20.18 | 381*356*468 | |
| 1-1/2" (DN40) | 24 | 837.63 | 20.10 | 432*408*346 | |
| 2" (DN50) | 18 | 1262.96 | 22.73 | 513*378*378 | |
| 2-1/2" (DN65) | 8 | 2722.74 | 21.78 | 436*312*508 | |
| 3" (DN80) | 6 | 4165.71 | 24.99 | 531*484*314 | |
| 4" (DN100) | 4 | 5750.00 | 23.00 | 542*406*349 | |
