Jenis bayaran:T/T,D/P,L/C,D/A,Paypal
Incoterm:FOB,CFR,CIF
Pesanan minimum:1 Piece/Pieces
Pengangkutan:Land,Air,Express,Ocean
$1.0000-40 /Piece/Pieces
Jenama: HY atau OEM
Jenis: Injap Pemadaman Kecemasan, Injap cek logam, Pemutus vakum atmosfera
Pensijilan: Mencapai
Penyesuaian Sokongan: ODM, OEM
Permohonan: Dapur komersial, Dapur rumah
Suhu Sederhana: Suhu tinggi
Kuasa: Manual
Medium Aliran: Asid
Struktur: Semak
Pembungkusan & Penghantaran: Delivery
Unit Menjual:: Set/set
Package Type:: Carton
Tempoh Jaminan: 3 tahun
Tempat Asal: China
Produktiviti: 15550
Pengangkutan: Land,Air,Express,Ocean
Tempat asal: cina
Sokongan mengenai: 15550
Sijil: sgs
Kod HS: 325644
Jenis bayaran: T/T,D/P,L/C,D/A,Paypal
Incoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

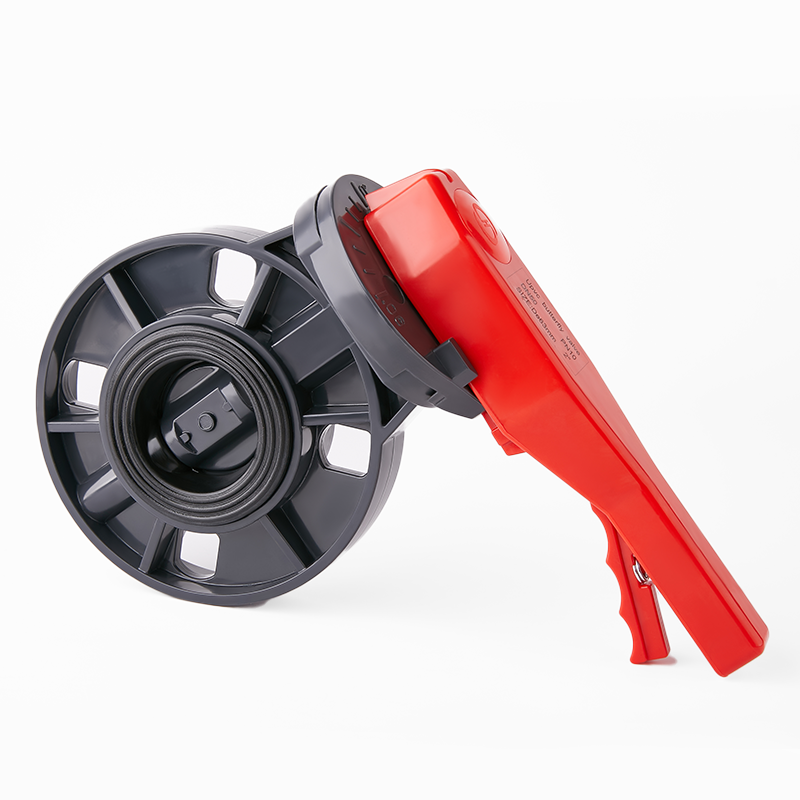

| Key Word: | UPVC Handle Butterfly Valve | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
| UPVC Butterfly Valve-Lever Handle Type Parts&Material | ||
| No. | Parts | Materials |
| 1 | Body | UPVC |
| 2 | Seat | EPDM,FPM |
| 3 | Locking Plate | PPS,FRPP |
| 4 | Handle | ABS,FRPP |
| 5 | Stem | steel,stainless steel |
| 6 | Disc | UPVC |
| 7 | O-ring | EPDM,FPM |
| UPVC DIN Butterfly Valve-Lever Handle Type Dimensions Table | ||||||
| DN | d | D | D1 | L | n | (Mpa) working pressure |
| GB/DIN | GB/DIN | |||||
| 25 | 35 | 85 | 125 | 37 | 4 | 1.0 |
| 32 | 35 | 100 | 125 | 37 | 4 | 1.0 |
40 |
47 | 110 |
145 |
38 | 4 | 1.0 |
| 50 | 56 | 125 | 160 | 40 | 4 | 1.0 |
| 65 | 71 | 145 | 180 | 45 | 4 | 1.0 |
| 80 | 85 | 160 | 195 | 46 | 8 | 1.0 |
| 100 | 105 | 180 | 225 | 55 | 8 | 1.0 |
| 125 | 131 | 210 | 255 | 62 | 8 | 0.6# |
| 150 | 153 | 240 | 285 | 67 | 8 | 0.6# |
| 200 | 210 | 295 | 340 | 85 | 8 | 0.6# |
| #号标注的规格，可定制1.0Mpa 工作压力的蝶阀 | ||||||
| UPVC JIS Butterfly Valve-Lever Handle Type Dimensions Table | ||||||
| DN | d | D | D1 | L | n | (Mpa) working pressure |
| JIS | JIS | |||||
| 25 | 35 | 90 | 125 | 37 | 4 | 1.0 |
| 32 | 35 | 100 | 125 | 37 | 4 | 1.0 |
40 |
47 | 105 |
145 |
38 | 4 | 1.0 |
| 50 | 56 | 120 | 160 | 40 | 4 | 1.0 |
| 65 | 71 | 140 | 180 | 45 | 4 | 1.0 |
| 80 | 85 | 150 | 195 | 46 | 8 | 1.0 |
| 100 | 105 | 175 | 225 | 55 | 8 | 1.0 |
| 125 | 131 | 210 | 255 | 62 | 8 | 0.6# |
| 150 | 153 | 240 | 285 | 67 | 8 | 0.6# |
| 200 | 210 | 290 | 340 | 85 | 12* | 0.6# |
| #号标注的规格，可定制1.0Mpa 工作压力的蝶阀 | ||||||
| UPVC ANSI Butterfly Valve-Lever Handle Type Dimensions Table | ||||||
| DN | d | D | D1 | L | n | (Mpa) working pressure |
| ANSI | ANSI | |||||
| 25 | 35 | 79 | 125 | 37 | 4 | 1.0 |
| 32 | 35 | 89 | 125 | 37 | 4 | 1.0 |
40 |
47 | 98 | 145 |
38 | 4 | 1.0 |
| 50 | 56 | 121 | 160 | 40 | 4 | 1.0 |
| 65 | 71 | 140 | 180 | 45 | 4 | 1.0 |
| 80 | 85 | 152 | 195 | 46 | 4* | 1.0 |
| 100 | 105 | 190 | 225 | 55 | 8 | 1.0 |
| 125 | 131 | 216 | 255 | 62 | 8 | 0.6# |
| 150 | 153 | 241 | 285 | 67 | 8 | 0.6# |
| 200 | 210 | 298 | 340 | 85 | 8 | 0.6# |
| #号标注的规格，可定制1.0Mpa 工作压力的蝶阀 | ||||||
