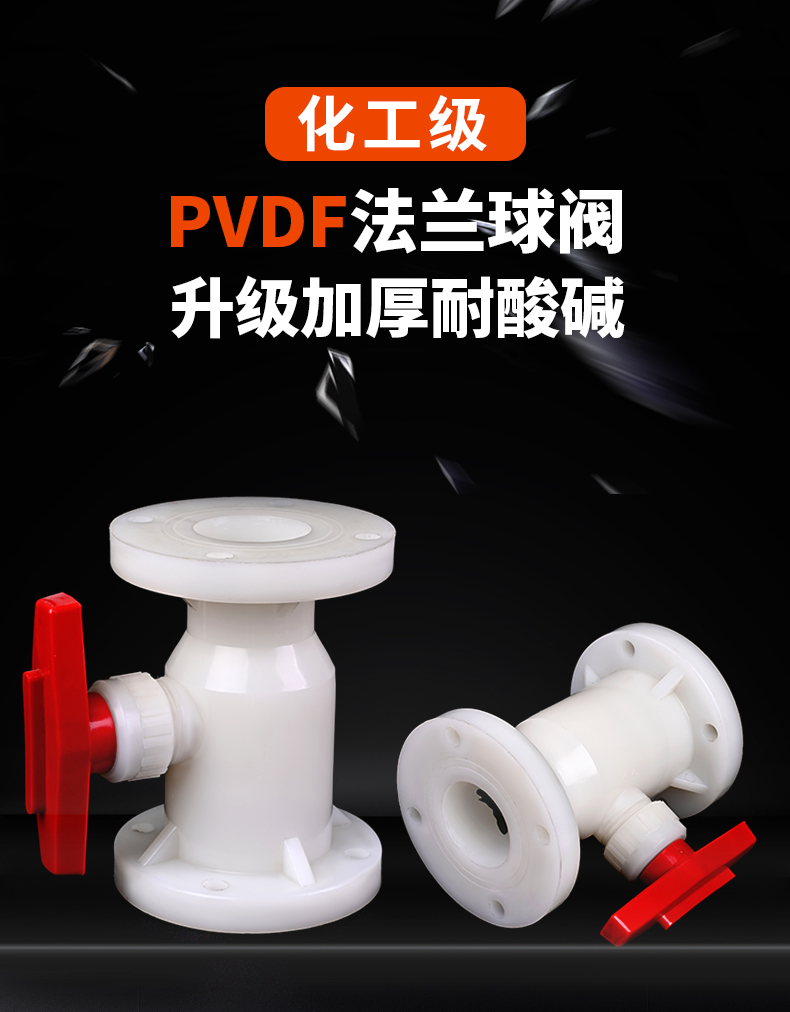

Injap Bebola Bebibir PVDF DIN PN10

Jenis bayaran:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF

Pesanan minimum:1

Pengangkutan:Ocean,Land,Air

$0.1-1 /

Atribut Produk
Membekalkan Keupayaan & Maklumat Tambaha...
Pembungkusan & Penghantaran

Atribut Produk

Jenama: HY atau OEM

Tempoh Jaminan: 3 tahun

Jenis: Injap bola

Penyesuaian Sokongan: OEM

Tempat Asal: China

Permohonan: Umum

Suhu Sederhana: Suhu normal

Kuasa: Hidraulik

Medium Aliran: Air, Minyak, Asid

Struktur: Bola

Tekanan Norminal: PN1.0 MPa

Membekalkan Keupayaan & Maklumat Tambaha...

Pengangkutan: Ocean,Land,Air

Jenis bayaran: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,CIF

Pembungkusan & Penghantaran

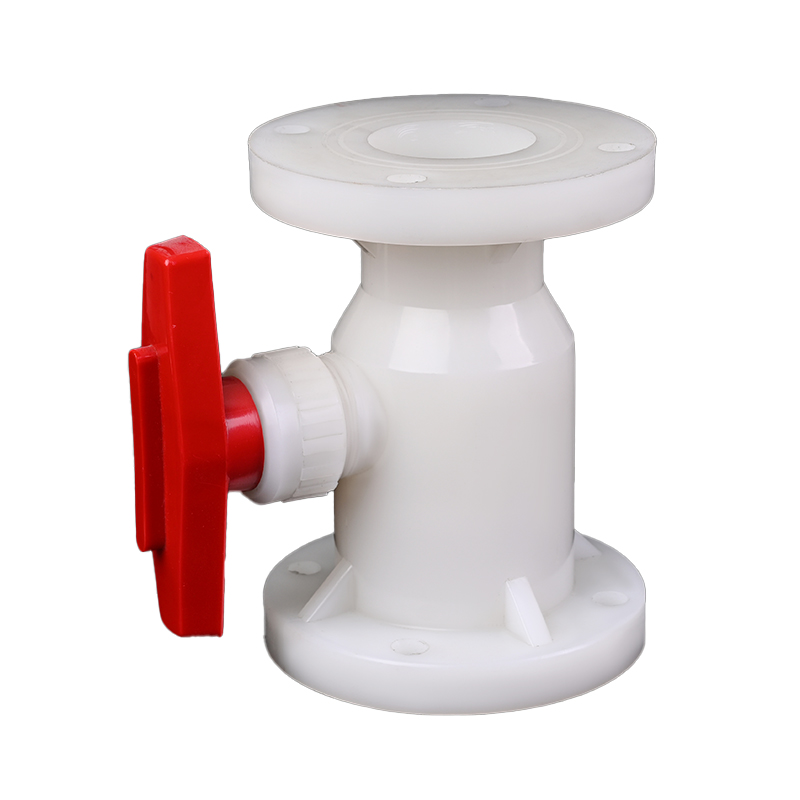

Injap Bebola Flange PVDF premium kami ialah injap bebola pvdf berprestasi tinggi yang direka bentuk untuk kawalan bendalir industri yang keras, dibuat daripada PVDF tahan lasak dengan rintangan kimia, kakisan dan suhu yang unggul. Sebagai varian utama siri Pvdf Flange Ball Valve dan Flange Ball Valve Pvdf, ia menampilkan struktur bebibir yang teguh untuk sambungan paip yang kukuh, pengedap ketepatan untuk operasi kalis bocor dan penggerak yang lancar. Ideal untuk pengendalian sederhana menghakis dalam pemprosesan kimia tekanan sederhana rendah, sistem cecair petrokimia dan industri.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	PVDF Flange Ball Valve DIN PN10
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PVDF
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Grey
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	-15 to 55 Degree Celsius
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Sebagai Pengeluar Injap Bola Bebibir PVDF terkemuka, kami pakar dalam penyelesaian kawalan aliran kejuruteraan yang direka untuk aplikasi industri yang paling mencabar. Siri True Union PVDF Flanged Ball Valve kami menggabungkan kemudahan penyelenggaraan dengan integriti struktur yang diperlukan untuk sistem paip tugas berat.

jiaxing-huya-pvc-pipe-manufacturer-factory-tour-production-line-exhibition

on-site-pvc-pipe-fitting-construction-and-application-gallery

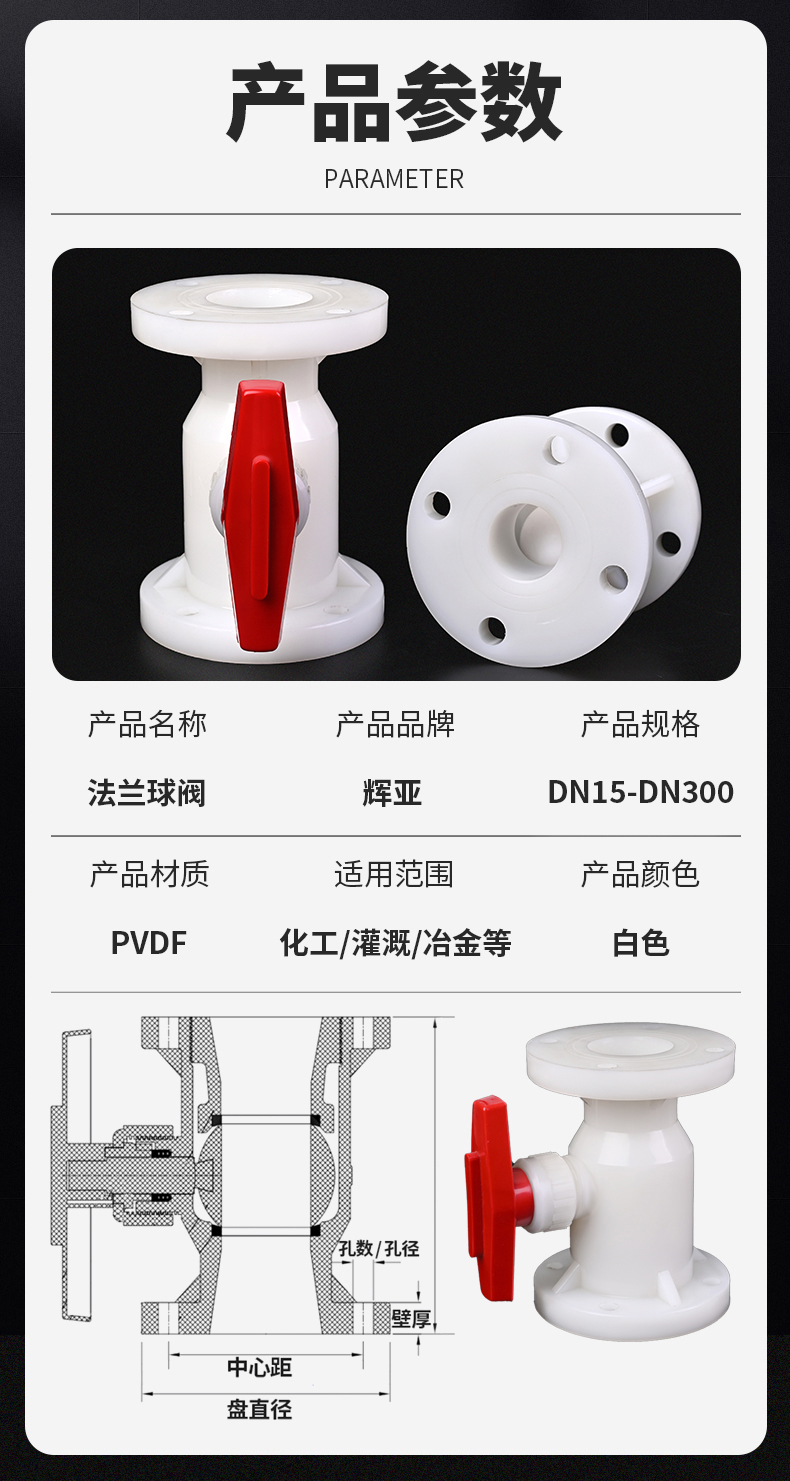

PVDF Flanged Ball Valve Parts&Material
No.	Parts	Materials
1	Body	PVDF
2	Ballseal	PTFE
3	Ball	PVDF
4	Inner plug	PVDF
5	Stem seal	PTFE
6	locator	PVDF
7	Compression nut	PVDF
8	Stem	PVDF
6	Handle	ABS

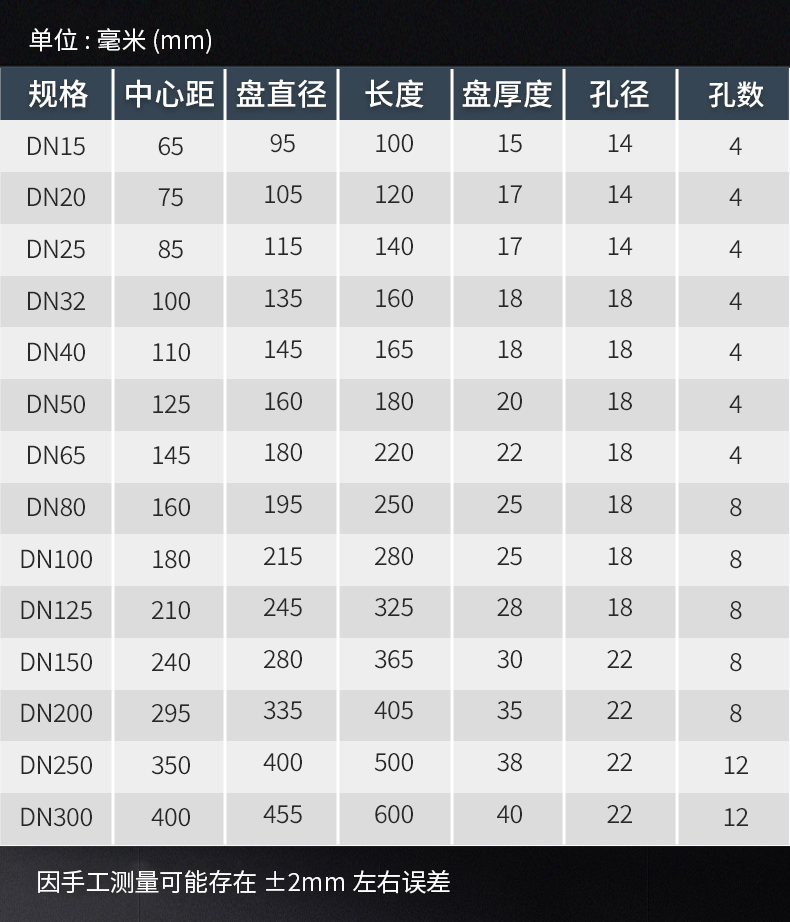

PVDF DIN Flanged Ball Valve Dimensions Table
DN	D1 (mm)	D(mm)	L(mm)	h(mm)	n	φ(mm)	(Mpa)working pressure
DN	D1 (mm)	DIN	L(mm)	h(mm)	HG/DIN	HG/DIN	FRPP/PPH	UPVC/CPVC	PVDF
15	95	65	100	15	4	14	1.0	1.6	1.6
20	105	75	120	17	4	14	1.0	1.6	1.6
25	115	85	140	17	4	14	1.0	1.6	1.6
32	135	100	160	18	4	18	1.0	1.6	1.6
40	145	110	165	18	4	18	1.0	1.0	1.6
50	160	125	180	20	4	18	1.0	1.0	1.6
65	180	145	220	22	4	18	1.0	1.0	1.0
80	195	160	250	25	8	18	1.0	1.0	1.0
100	215	180	280	25	8	18	1.0	1.0	1.0
125	245	210	325	28	8	18	0.6	0.6	1.0
150	280	240	365	30	8	22	0.6	0.6	1.0
200	335	295	405	35	8	22	0.3	0.3	0.6
250	400	350	500	38	12	22	0.3	0.3	0.4
300	455	400	600	40	12	22	0.3	0.3	0.3

PVDF JIS Flanged Ball Valve Dimensions Table
DN	D1 (mm)	D(mm)	L(mm)	h(mm)	n	φ(mm)	(Mpa)working pressure
DN	D1 (mm)	JIS	L(mm)	h(mm)	JIS	JIS	FRPP/PPH	UPVC/CPVC	PVDF
15	95	70	100	15	4	15	1.0	1.6	1.6
20	105	75	120	17	4	15	1.0	1.6	1.6
25	115	90	140	17	4	15	1.0	1.6	1.6
32	135	100	160	18	4	19	1.0	1.6	1.6
40	145	105	165	18	4	19	1.0	1.0	1.6
50	160	120	180	20	4	19	1.0	1.0	1.6
65	180	140	220	22	4	19	1.0	1.0	1.0
80	195	150	250	25	8	19	1.0	1.0	1.0
100	215	175	280	25	8	19	1.0	1.0	1.0
125	245	210	325	28	8	19	0.6	0.6	1.0
150	280	240	365	30	8	23	0.6	0.6	1.0
200	335	290	405	35	12*	23	0.3	0.3	0.6
250	400	355	500	38	12	25	0.3	0.3	0.4
300	455	400	600	40	16*	25	0.3	0.3	0.3

PVDF ANSI Flanged Ball Valve Dimensions Table
DN	D1 (mm)	D(mm)	L(mm)	h(mm)	n	φ(mm)	(Mpa)working pressure
DN	D1 (mm)	ANSI	L(mm)	h(mm)	ANSI	ANSI	FRPP/PPH	UPVC/CPVC	PVDF
15	95	60	100	15	4	16	1.0	1.6	1.6
20	105	70	120	17	4	16	1.0	1.6	1.6
25	115	79	140	17	4	16	1.0	1.6	1.6
32	135	89	160	18	4	16	1.0	1.6	1.6
40	145	98	165	18	4	16	1.0	1.0	1.6
50	160	121	180	20	4	19	1.0	1.0	1.6
65	180	140	220	22	4	19	1.0	1.0	1.0
80	195	152	250	25	4*	19	1.0	1.0	1.0
100	215	190	280	25	8	19	1.0	1.0	1.0
125	245	216	325	28	8	22	0.6	0.6	1.0
150	280	241	365	30	8	22	0.6	0.6	1.0
200	335	298	405	35	8	22	0.3	0.3	0.6
250	400	362	500	38	12	26	0.3	0.3	0.4
300	455	432	600	40	12	26	0.3	0.3	0.3
