Jiaxing Huiya Pipeline Technology Co., Ltd
Jenis bayaran:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR
Pengangkutan:Ocean,Land,Air
Jenama: HY atau OEM
Warranty: 12 Months
Sokongan Tersuai: OEM, ODM
Tempat Asal: Zhejiang, China
Jenama: OEM
Model Number: Pipe
Technic: Casting
Connectivity: Welding
Shape: Straight
Kod Kepala: Bulat
Rawatan permukaan: Smooth
Nama produk: PVDF Pipe
Warna: Putih
Standard: Industrial grade
Bahan: Pvdf
Product Standards: Chinese standards
Moq: 1 keping
Service: Within 24 Hours Reply
Pensijilan: GS
Tempoh Jaminan: 3 tahun
Penyesuaian Sokongan: OEM
Tempat Asal: China
Kraf: Casting
Kaedah Sambungan: Kimpalan
Pengangkutan: Ocean,Land,Air
Jenis bayaran: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR
The file is encrypted. Please fill in the following information to continue accessing it

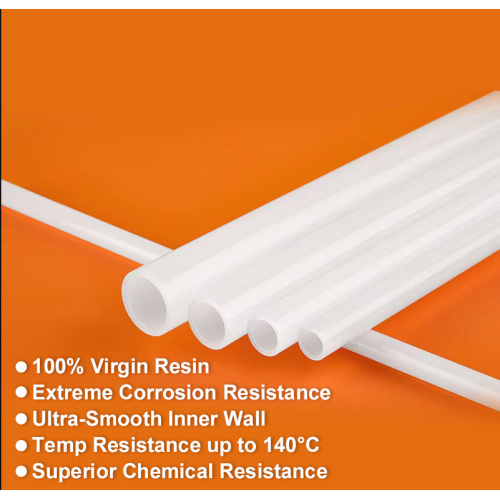

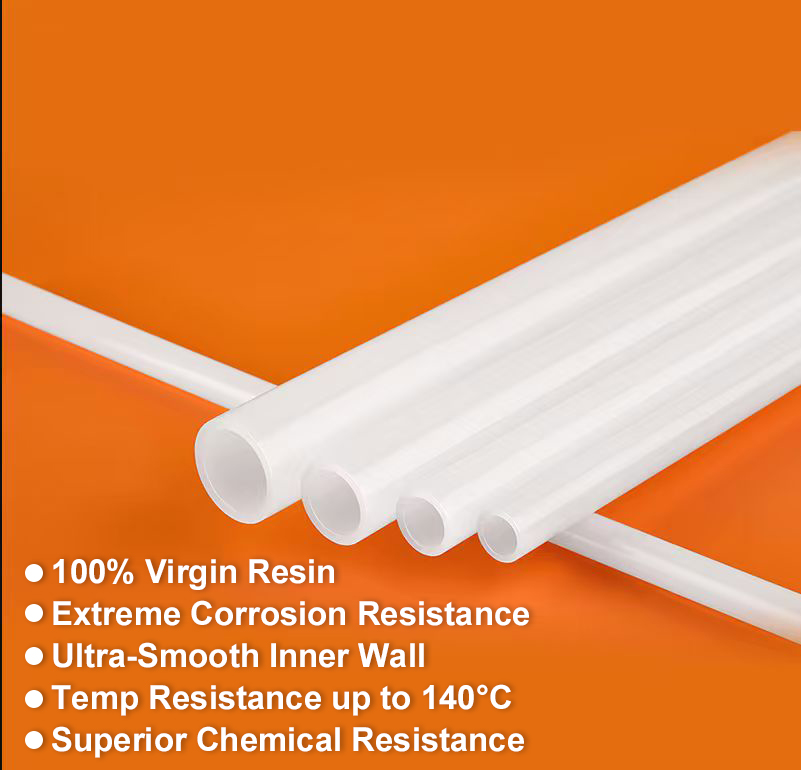

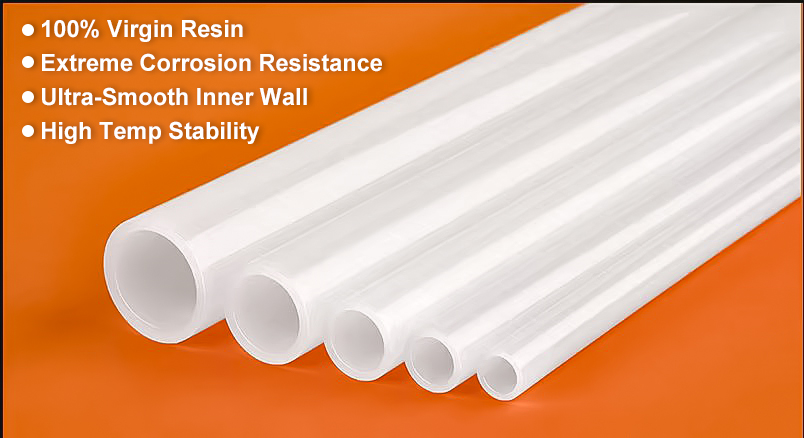

Dihasilkan daripada 100% damar dara, tidak berpigmen, sistem paip PVDF perindustrian kami mengekalkan kekuatan mekanikal yang luar biasa dan keupayaan menanggung tekanan (sehingga PN16) pada suhu cecair berterusan yang melampau sehingga 140°C (284°F) . Tambahan pula, permukaan dalamannya yang sangat licin dan sifat ketulenan tinggi menjadikannya sangat tahan terhadap pertumbuhan bakteria, memastikan pencemaran ion sifar.
Ini menjadikan paip tegar PVDF kami pilihan standard untuk sistem air ultra-tulen (UPW) semikonduktor, loji pemprosesan kimia yang keras dan kemudahan penyaduran elektrik. Tersedia dalam rangkaian penuh saiz metrik dan imperial, paip ini memastikan sambungan kalis bocor 100% melalui gabungan soket standard atau kaedah kimpalan punggung IR.

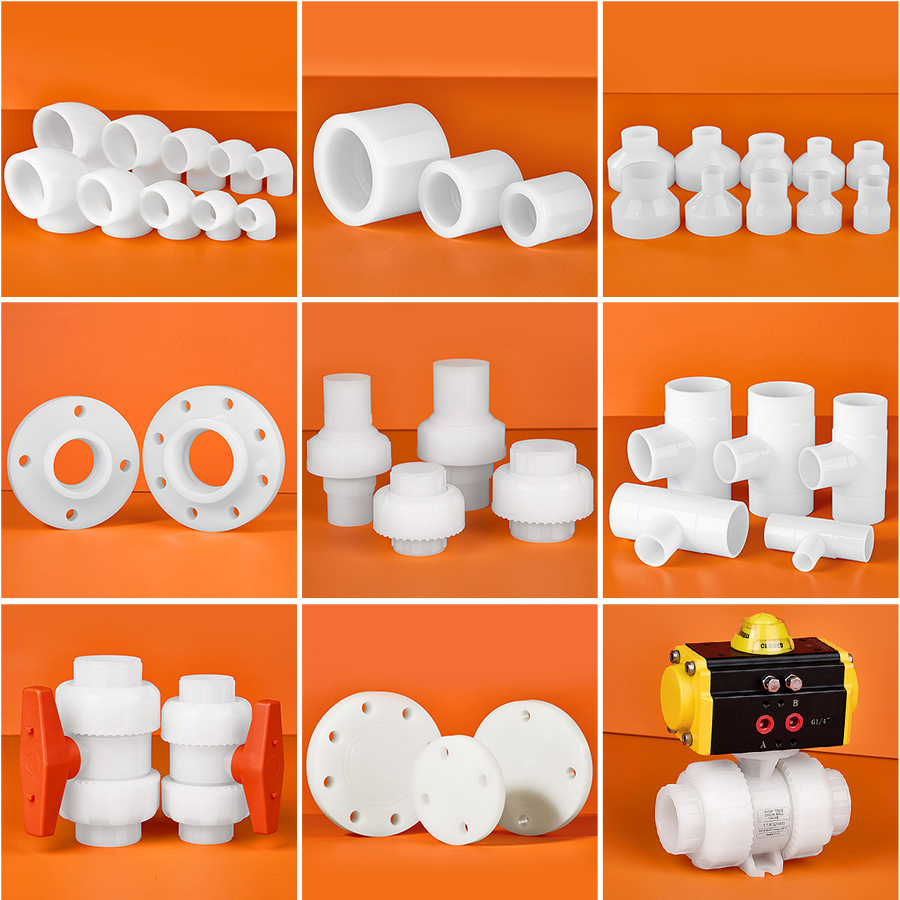

| Key Word: | Industrial High-Purity PVDF Pipes & fittings | |||
| Connect Type: | Socket Fusion / Butt Fusion | |||
| Material: | 100% virgin PVDF | |||
| Specifications: | Size(dimensions): | DN15-300 (1/2" -12") | ||
| Standard: | ISO | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | 140 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVDF material | |||
| 2.Temp Resistance up to 140°C | ||||
| 3.Superior Chemical Resistance | ||||
|
Application:
|
|
|||
| Certificate: |
SGS,CE
|
|||

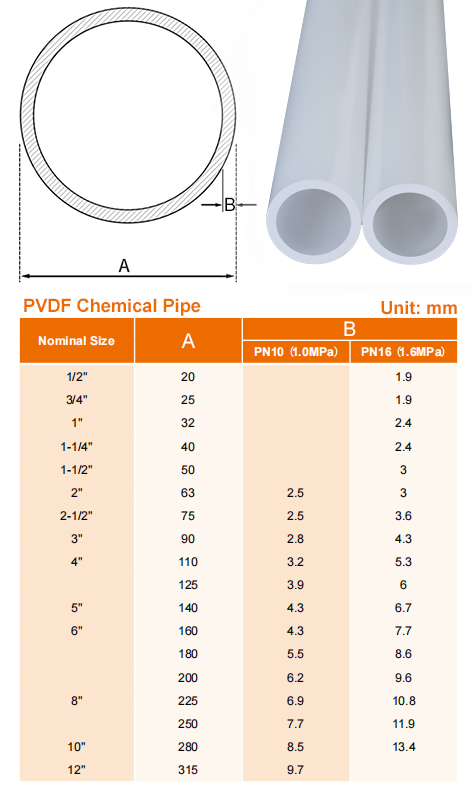

| Nominal Size | Outside Diameter (A) | Wall Thickness (B) | |
| PN10(1.0MPa) | PN16(1.6MPa) | ||
| 1/2" | 20 | 1.9 | |
| 3/4" | 25 | 1.9 | |
| 1" | 32 | 2.4 | |
| 1-1/4" | 40 | 2.4 | |
| 1-1/2" | 50 | 3 | |
| 2" | 63 | 2.5 | 3 |
| 2-1/2" | 75 | 2.5 | 3.6 |
| 3" | 90 | 2.8 | 4.3 |
| 4" | 110 | 3.2 | 5.3 |
| 125 | 3.9 | 6 | |
| 5" | 140 | 4.3 | 6.7 |
| 6" | 160 | 4.3 | 7.7 |
| 180 | 5.5 | 8.6 | |
| 200 | 6.2 | 9.6 | |
| 8" | 225 | 6.9 | 10.8 |
| 250 | 7.7 | 11.9 | |
| 10" | 280 | 8.5 | 13.4 |
| 12" | 315 | 9.7 | |

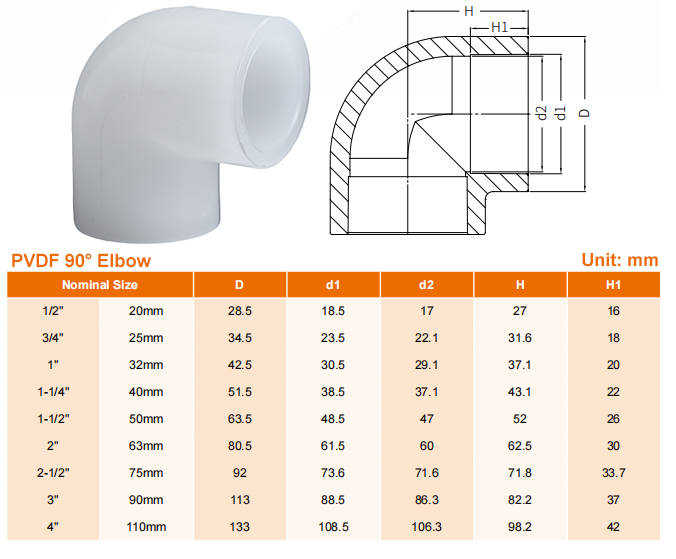

| Nominal Size | D | d1 | d2 | H | H1 | |
| 1/2" | 20mm | 28.5 | 18.5 | 17 | 27 | 16 |
| 3/4" | 25mm | 34.5 | 23.5 | 22.1 | 31.6 | 18 |
| 1" | 32mm | 42.5 | 30.5 | 29.1 | 37.1 | 20 |
| 1-1/4" | 40mm | 51.5 | 38.5 | 37.1 | 43.1 | 22 |
| 1-1/2" | 50mm | 63.5 | 48.5 | 47 | 52 | 26 |
| 2" | 63mm | 80.5 | 61.5 | 60 | 62.5 | 30 |
| 2-1/2" | 75mm | 92 | 73.6 | 71.6 | 71.8 | 33.7 |
| 3" | 90mm | 113 | 88.5 | 86.3 | 82.2 | 37 |
| 4" | 110mm | 133 | 108.5 | 106.3 | 98.2 | 42 |

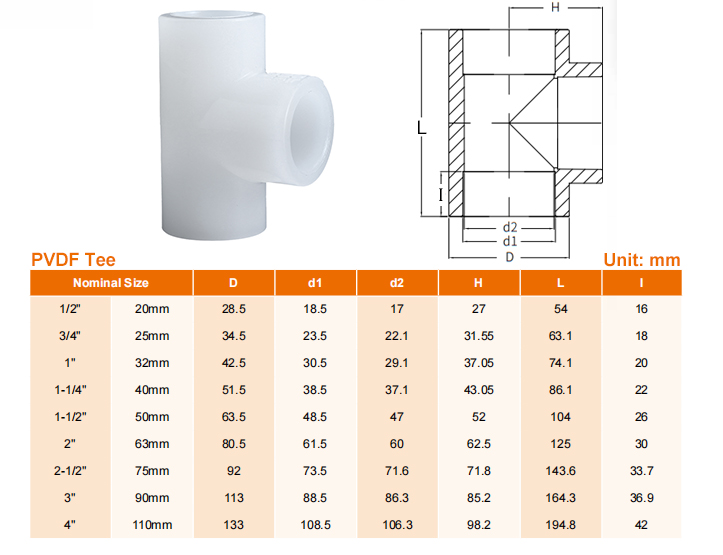

| NominalSize | D | d1 | d2 | H | L | I | |
| 1/2" | 20mm | 28.5 | 18.5 | 17 | 27 | 54 | 16 |
| 3/4" | 25mm | 34.5 | 23.5 | 22.1 | 31.55 | 63.1 | 18 |
| 1" | 32mm | 42.5 | 30.5 | 29.1 | 37.05 | 74.1 | 20 |
| 1-1/4" | 40mm | 51.5 | 38.5 | 37.1 | 43.05 | 86.1 | 22 |
| 1-1/2" | 50mm | 63.5 | 48.5 | 47 | 52 | 104 | 26 |
| 2" | 63mm | 80.5 | 61.5 | 60 | 62.5 | 125 | 30 |
| 2-1/2" | 75mm | 92 | 73.5 | 71.6 | 71.8 | 143.6 | 33.7 |
| 3" | 90mm | 113 | 88.5 | 86.3 | 85.2 | 164.3 | 36.9 |
| 4" | 110mm | 133 | 108.5 | 106.3 | 98.2 | 194.8 | 42 |

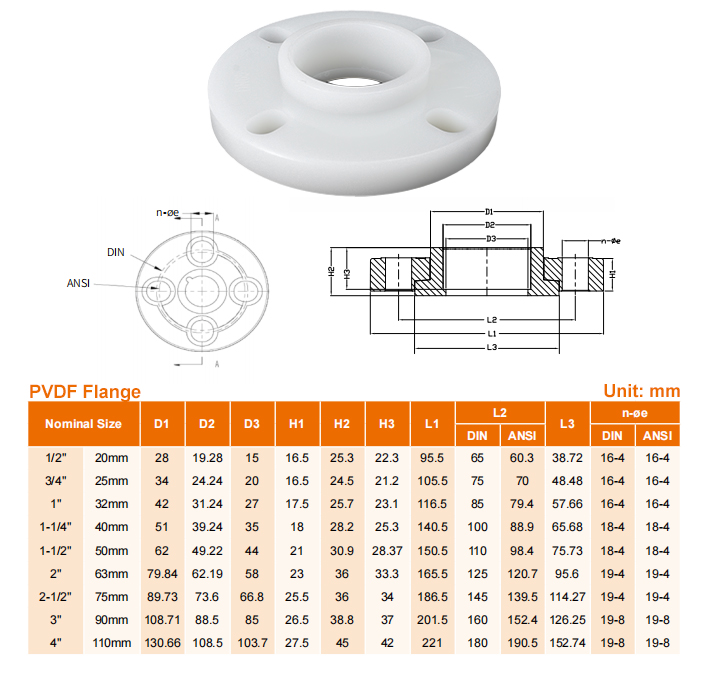

| Nominal Size | D1 | D2 | D3 | H1 | H2 | H3 | L1 | L2 | L3 | n-φe | |||
| DIN | ANSI | DIN | ANSI | ||||||||||
| 1/2" | 20mm | 28 | 19.28 | 15 | 16.5 | 25.3 | 22.3 | 95.5 | 65 | 60.3 | 38.72 | 16-4 | 16-4 |
| 3/4" | 25mm | 34 | 24.24 | 20 | 16.5 | 24.5 | 21.2 | 105.5 | 75 | 70 | 48.48 | 16-4 | 16-4 |
| 1" | 32mm | 42 | 31.24 | 27 | 17.5 | 25.7 | 23.1 | 116.5 | 85 | 79.4 | 57.66 | 16-4 | 16-4 |
| 1-1/4" | 40mm | 51 | 39.24 | 35 | 18 | 28.2 | 25.3 | 140.5 | 100 | 88.9 | 65.68 | 18-4 | 18-4 |
| 1-1/2" | 50mm | 62 | 49.22 | 44 | 21 | 30.9 | 28.37 | 150.5 | 110 | 98.4 | 75.73 | 18-4 | 18-4 |
| 2" | 63mm | 79.84 | 62.19 | 58 | 23 | 36 | 33.3 | 165.5 | 125 | 120.7 | 95.6 | 19-4 | 19-4 |
| 2-1/2" | 75mm | 89.73 | 73.6 | 66.8 | 25.5 | 36 | 34 | 186.5 | 145 | 139.5 | 114.27 | 19-4 | 19-4 |
| 3" | 90mm | 108.71 | 88.5 | 85 | 26.5 | 38.8 | 37 | 201.5 | 160 | 152.4 | 126.25 | 19-8 | 19-8 |
| 4" | 110mm | 130.66 | 108.5 | 103.7 | 27.5 | 45 | 42 | 221 | 180 | 190.5 | 152.74 | 19-8 | 19-8 |

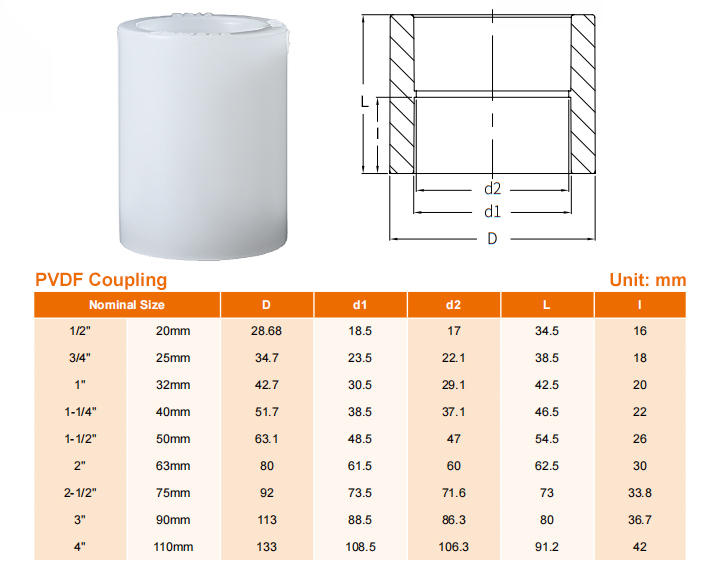

| Nominal Size | D | d1 | d2 | L | 1 | |
| 1/2" | 20mm | 28.68 | 18.5 | 17 | 34.5 | 16 |
| 3/4" | 25mm | 34.7 | 23.5 | 22.1 | 38.5 | 18 |
| 1" | 32mm | 42.7 | 30.5 | 29.1 | 42.5 | 20 |
| 1-1/4" | 40mm | 51.7 | 38.5 | 37.1 | 46.5 | 22 |
| 1-1/2" | 50mm | 63.1 | 48.5 | 47 | 54.5 | 26 |
| 2" | 63mm | 80 | 61.5 | 60 | 62.5 | 30 |
| 2-1/2" | 75mm | 92 | 73.5 | 71.6 | 73 | 33.8 |
| 3" | 90mm | 113 | 88.5 | 86.3 | 80 | 36.7 |
| 4" | 110mm | 133 | 108.5 | 106.3 | 91.2 | 42 |
